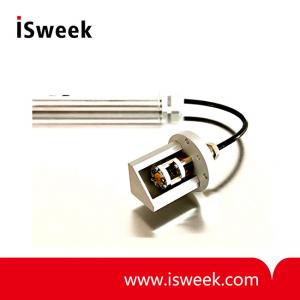

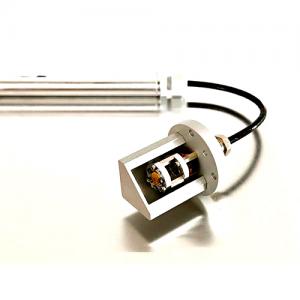

NDIR CO2 Sensor Gas Measurement Module - NDIR CO2 Sensor
Measuring Gas : CO2
Measurement Range : 0 ~ 20 vol%
Measuring Temperature Range : 0 ~ 190 °C
Measurement Accuracy : ±(0.2 vol% + 2 % of read)
Response Time : < 30 s
Temperature Range Sensor : -25 ~ +200 °C
- Model Number: NDIR CO2 Sensor
- Data Sheet:
- Quantity:
- - +
Product Specification
NDIR CO2 Sensor Gas Measurement Module Description
High Temperature CO2-Gas Measurement Module for operating temperatures up to 190℃ and external electronics. Perfectly suitable for monitoring CO2-concentration in gas mixtures and measuring the ambient air temperature.
NDIR CO2 Sensor Gas Measurement Module parameter
|
Parameter |
Value |
|
Concept |
optical double beam configuration atmosphere pressure compensated |
|
Measuring Gas |
CO2 |
|
Measurement Range |
0 ~ 20 vol% |
|
Measuring Temperature Range |
0 ~ 190 ℃ |
|
Measurement Accuracy |
±(0.2 vol% + 2 % of read) |
|
Additional Errors |
< 2 % of the measured value for temperature and atmospheric pressure |
|
Response Time |
< 30 s |
|
Heat Up Time |
< 15 min |
|
Temperature Range Sensor |
-25 … +200 ℃ |
|
Temperature Range Ext. Electronics |
-25 … +85 ℃ |
|
Interfaces |
4 - 20 mA 0 - 1 V, 0 - 10 V RS232, CAN |
|
Supply Voltage |
12 V ±1 V max. 2 W |
