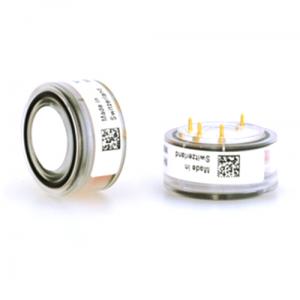

Nitric Oxide Gas Sensor (NO Sensor) - NO/C-100

? Nominal Range: 0 - 100 ppm
? Maximum Overload: ND
? Expected Operation Life: 3 years in air
? Output Signal: 550 ± 110 nA/ppm
? Resolution: 0.5 ppm
? Repeatability: < 2 % of signal
? T90 Response Time: < 25 sec
? Temperature Range: -20°C to 45°C
? Relative Humidity Range: 15 % to 90 % R.H. non-condensing

  • Model Number: NO/C-100
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Nitric Oxide Gas Sensor (NO Sensor)
Mouse over image to zoom
Share:

Product Specification

Compact Gas Sensors
Highest reliability and maximum performance in a compact housing. Suitable in most of all applications.

Features
Air vent on the back
O-ring on the front

Dimensions
Conforms to 7-Series
Diameter: 32 mm
Height: 17 mm
Pin diameter: 1.0 mm

NO/C-100 Nitric Oxide Sensor (NO Sensor) Applications
Safety and Environmental Control

NO/C-100 Nitric Oxide Sensor (NO Sensor) Performance Characteristics
Performance data conditions: 20°C, 50% RH and 1013 mbar

Nominal Range
0 - 100 ppm
Maximum Overload
ND
Expected Operation Life
3 years in air
Output Signal
550 ± 110 nA/ppm
Resolution
0.5 ppm
Temperature Range
-20°C to 45°C
Pressure Range
Atmospheric ± 10%
Pressure Coefficient
No data
T90 Response Time
< 25 sec
Relative Humidity Range
15 % to 90 % R.H. non-condensing
Typical Baseline Range (pure air, 20°C)
+1 to + 4 ppm
Maximum Zero Shift (+20°C to +40°C)
12 ppm
Long Term Output Drift
< 2% signal loss/month
Recommended Load Resistor
10 Ohm
Bias Voltage
+ 300 mV
Repeatability
< 2 % of signal
Output Linearity
Linear

NO/C-100 Nitric Oxide Sensor (NO Sensor) Physical Characteristics
Weight
~ 13g
Position Sensitivity
None
Storage Life
Six months in container
Recommended Storage Temperature
5°C - 20°C
Warranty Period
12 months from date of dispatch

NO/C-100 Nitric Oxide Sensor (NO Sensor) Cross Sensitivity Data
Interfering Gas
Concentration
Reading
CO
300 ppm
0 ppm
SO2
ND
H2S
15 ppm
<5 ppm
NO2
10 ppm
<3 ppm
H2
300 ppm
0 ppm
