Online Digital pH Sensor - Y532-B
?? ?Range: 2-12 pH
?? ?Accuracy: ±0.1 pH
?? ?Housing IP Rating: IP68
?? ?Depth Rating: 10m?
?? ?Operation Temperature: 0 ~ 50℃
?? ?Interface: RS-485, MODBUS protocols?
?? ?Power Requirements: DC 5~12V, current <50mA
- Quantity:
- - +
Product Specification

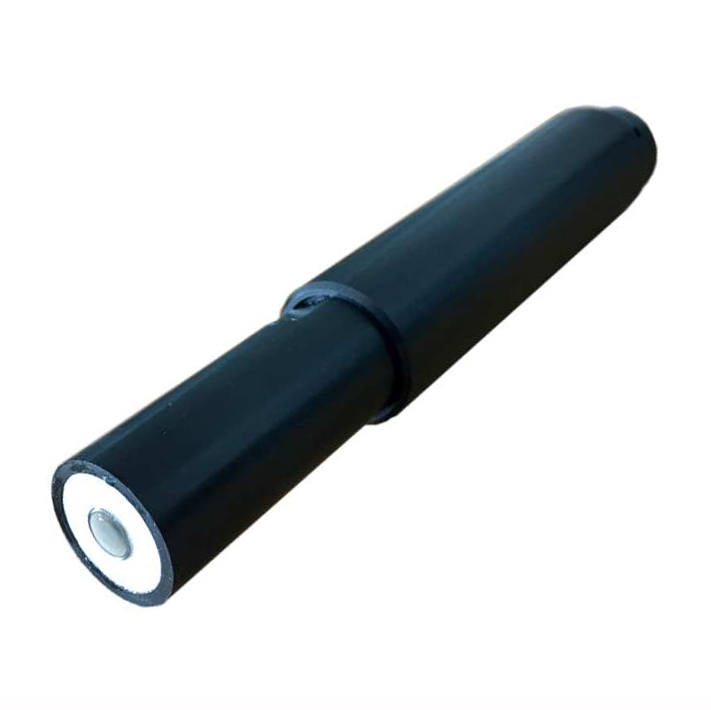

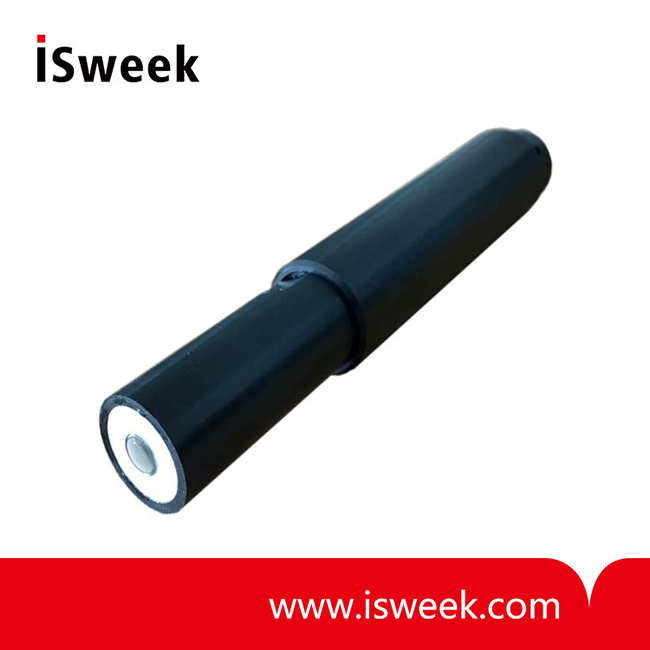

Y532-B?pH Sensor?Description
Y532-B is a general purpose digital pH sensor, which uses a rugged industrial electrode and a built-in temperature sensor for automatic temperature compensation, and supports RS485 Modbus digital output. It is ideal for long-term online monitoring.
Y532-B?pH Sensor?Specifications
??Range: 2-12 pH
??Accuracy: 0.1 pH
??Operation Temperature: 0~50 ℃; Built-in temperature sensor
??Automatic temperature compensation
??Depth Rating: IP68, 10 m immersion
??Digital Outpu
Y532-B?pH Sensor?Technical Specifications
|
Item |
Specification |
|
Range |
2-12 pH |
|
Accuracy |
±0.1 pH |
|
Housing IP Rating |
IP68 (completed electrode assembly) |
|
Depth Rating |
10m |
|
Storage Temperature |
0~60℃ |
|
Operation Temperature |
0 ~ 50℃ |
|
Interface |
RS-485, MODBUS protocols |
|
Assembly |
submersible |
|
Power Requirements |
DC 5~12V, current <50mA |
|
Sensor OD |
26 mm |
|
Sensor Length |
167.5 mm |
|
Cable Length |
10m standard; 5m, 15m or 30m optional |
|
Body Materials |
POM, 316L |
|
Calibration |
Three points |
