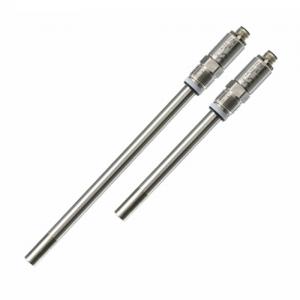

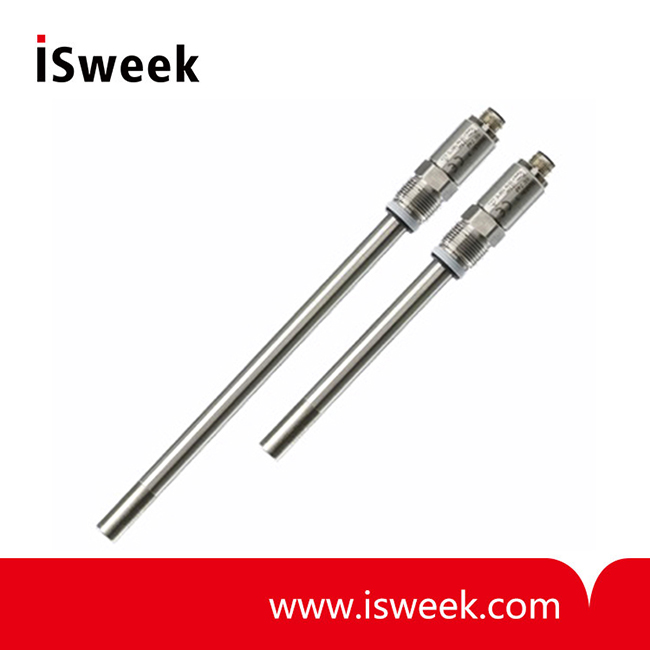

Optical Oxygen Sensor - SE 740
- Measuring range: 4 ppb / 0.05 ~ 300 % saturation
- Resolution: 0.1 ppb
- Pressure range Prel: -1 ~ 12 bar
- Temperature range: -10 ~ 130℃
- measurements: 0 ~ 80℃
- Temperature detector: NTC 22 kohms
- no polarization required
- replaceable sensor element
- Model Number: SE 740
- Data Sheet:
- Quantity:
- - +
Product Specification
SE 740 Optical Oxygen Sensor
Optical oxygen measurement based on fluorescence quenching technology
Flow-independent optical oxygen sensor with fast response. Ideal for measurements in demanding hygienic environments. Steam-sterilizable, autoclavable and CIP- capable.
SE 740 Optical Oxygen Sensor?Applications
Food, pharmaceutics, fermentation and process
SE 740 Optical Oxygen Sensor?Facts
?- flow-independent measuring principle
?- no polarization required
?- replaceable sensor element
?- integrated wear monitoring
?- stainless steel 1.4435, Inspection Certificate 3.1, Ra < 0.4 μm
?- gaskets conforming to FDA and USP VI
?- temperature range: -10 ~ 130℃ measurements: 0 ~ 80℃
?- pressure range: -1 ~ 12 bar
?- measuring range: 0.05 ~ 300 % saturation
?- reliable digital communication with Stratos Evo
SE 740 Optical Oxygen Sensor?Specifications
|
Measuring range |
?4 ppb / 0.05 ~ 300 % saturation |
|
Resolution |
?0.1 ppb |
|
Response time at 25℃ (air -> N2 ) |
?98 % full scale < 30 s |
|
Pressure range Prel |
?-1 ~ 12 bar |
|
Temperature range |
?-10 ~ 130℃ |
|
measurements |
?0 ~ 80℃ |
|
O-ring material |
?silicone and FKM (Viton) |
|
Process-wetted sensor parts |
?stainless steel 1.4435 |
|
Temperature detector |
?NTC 22 kohms |
|
Process adaptation |
?Pg 13.5 |
|
Sensor cap |
?M12 (8 pins) |
