Optomax Industrial Glass Series Liquid Level Switches - LLG210D3-00x

Supply voltage: 4.5VDC to 15.4VDC
Supply current: 2.5mA max.
Output sink and source current: 1A?
Operating temperature?: -40 to +125℃?
Storage Temperature?: -40 to +125℃
Operating pressure?: 0 to 600 bar?

  • Model Number: LLG210D3-00x
  • Data Sheet: Date Sheet File
Quantity:
- +

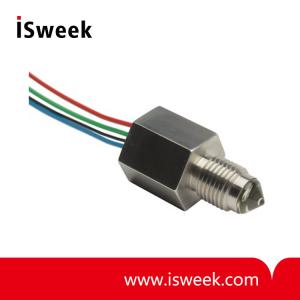

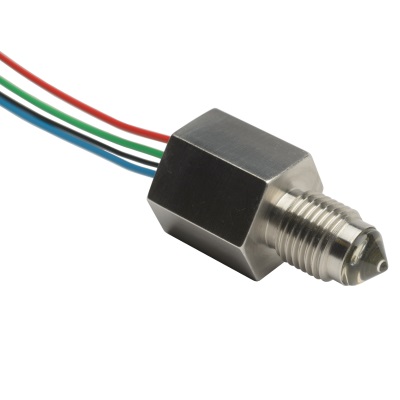

  • Optomax Industrial Glass Series Liquid Level Switches
  • Optomax Industrial Glass Series Liquid Level Switches
Mouse over image to zoom
Share:

Product Specification

Optomax Industrial Glass Series Liquid Level Switches Description
The Optomax Industrial Glass range liquid level switches can operate in aggressive environments due to their stainless steel and glass construction while offering industrial supply voltages and outputs that can directly drive loads.

The microcontroller based Optomax Industrial Glass Range liquid level switches are solid state, incorporating an infra-red LED and phototransistor which are optically coupled by the tip when the sensor is in air. When the sensing tip is immersed in liquid, the infra-red light escapes making the output change state. The sensor can detect the presence or absence of almost any liquid type; oil or water based. It is insensitive to ambient light and is not affected by foam when in air or by small bubbles when in liquid.

A range of N and P type output configurations can sink or source up to 1A at supply voltage ranges from 4.5 to 15.4Vdc or 8 to 30Vdc and can be configured to output a high or low signal in either a wet or dry state. Options for connecting to inductive loads or digital interfaces are also available.

With housing threads suitable for external sensor mounting and for use in two operating temperature ranges; Standard (-25 to 80°C) or Extended (-40 to 125°C).


LLG210D3-00x Liquid Level Switches FEATURES
? Liquid level switches that can detect almost any liquid type; oil or water based
? Suitable for harsh environments; robust stainless steel housing and glass tip
? Choice of mounting threads


LLG210D3-00x Liquid Level Switches BENEFITS
? High power
? Industrial supply voltage
? Direct load drive


LLG210D3-00x Liquid Level Switches TECHNICAL SPECIFICATIONS

Supply voltage (Vs)
4.5VDC to 15.4VDC
Supply current (ls)
2.5mA max. (Vs = 15.4VDC)
Output sink and source current (lout)
1A
Operating temperature
-40 to +125℃
Storage Temperature
-40 to +125℃
Operating pressure
0 to 600 bar
Housing material
Stainless steel with glass tip
Sensor termination
20AWG, 250mm PTFE wires, 8mm tinned

LLG210D3-00x Liquid Level Switches OUTPUT VALUES
Output Voltage (Vout):    lout = 1A
Vs = 4.5-15.4VDC
Output High
Vout = Vs - 1.5V max

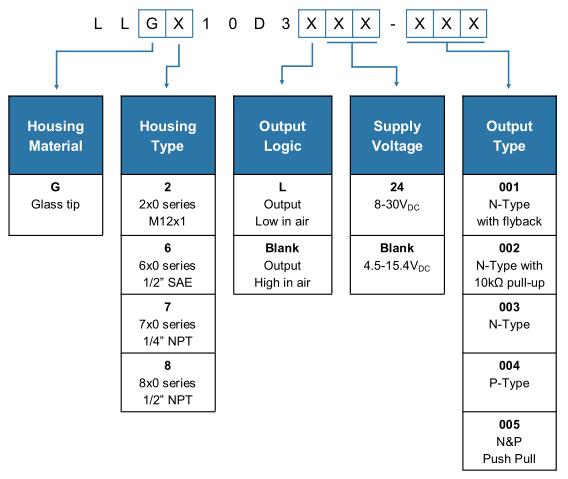

Optomax Industrial Glass Series Liquid Level Switches ORDER INFORMATION
Generate your specific part number using the convention shown below. Use only those letters and numbers that correspond to the sensor and output options you require — omit those you do not.
