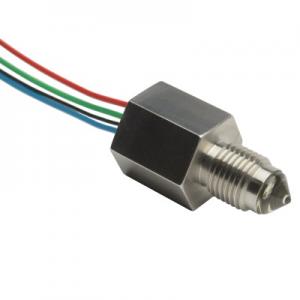

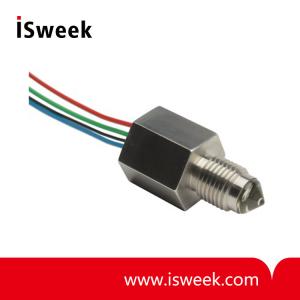

Optomax Industrial Glass Series Liquid Level Switches - LLG210D3L24-00x

Product Specification

Optomax Industrial Glass Series Liquid Level Switches Description

The Optomax Industrial Glass range liquid level switches can operate in aggressive environments due to their stainless steel and glass construction while offering industrial supply voltages and outputs that can directly drive loads.

The microcontroller based Optomax Industrial Glass Range liquid level switches are solid state, incorporating an infra-red LED and phototransistor which are optically coupled by the tip when the sensor is in air. When the sensing tip is immersed in liquid, the infra-red light escapes making the output change state. The sensor can detect the presence or absence of almost any liquid type; oil or water based. It is insensitive to ambient light and is not affected by foam when in air or by small bubbles when in liquid.

A range of N and P type output configurations can sink or source up to 1A at supply voltage ranges from 4.5 to 15.4Vdc or 8 to 30Vdc and can be configured to output a high or low signal in either a wet or dry state. Options for connecting to inductive loads or digital interfaces are also available.

With housing threads suitable for external sensor mounting and for use in two operating temperature ranges; Standard (-25 to 80°C) or Extended (-40 to 125°C).

LLG210D3L24-00x Liquid Level Switches BENEFITS
? High power
? Industrial supply voltage
? Direct load drive

LLG210D3L24-00x Liquid Level Switches TECHNICAL SPECIFICATIONS

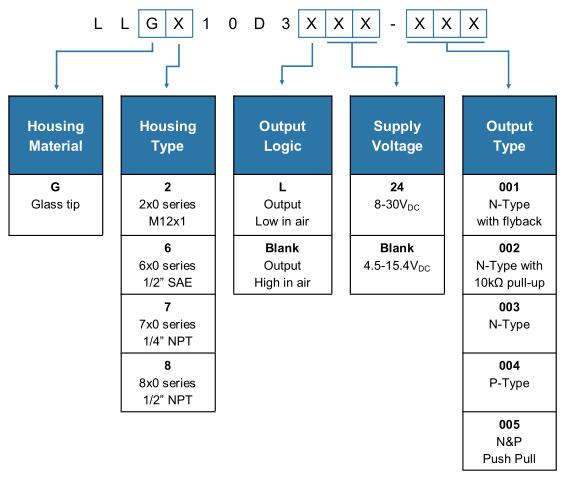

Optomax Industrial Glass Series Liquid Level Switches Description ORDER INFORMATION
Generate your specific part number using the convention shown below. Use only those letters and numbers that correspond to the sensor and output options you require — omit those you do not.
