Oxygen Gas Sensor (O2 Sensor) - O2/M-100

? Nominal Range: 0 - 30 ppm
? Maximum Overload: 100 ppm
? Expected Operation Life: >3 years in air
? Output Signal: 1.6 to 2.6 mA in ai
? Sensitivity: 100 ± 24 μA/%
? Resolution: 0.05%
? T90 Response Time: < 20 sec?
? ?Temperature Range: -20°C to 50°C
? Relative Humidity Range: 15 % to 90 % R.H. non-condensing

  • Model Number: O2/M-100
  • Data Sheet: Date Sheet File
Quantity:
- +

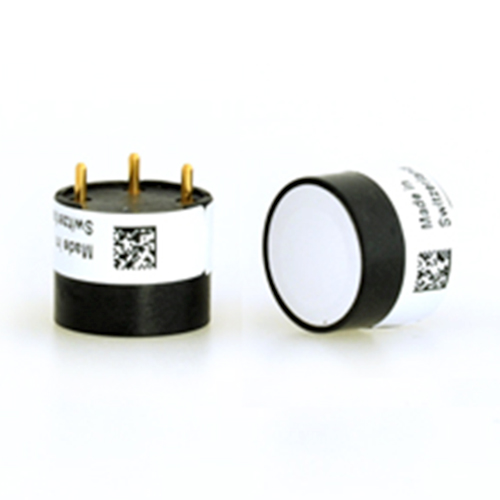

  • Oxygen Gas Sensor (O2 Sensor)
Mouse over image to zoom
Share:

Product Specification

Miniature Gas Sensors
Industry standard for portable gas detectors. Widely-used format for personal safety.

Features
Smallest siz

Dimensions
Conforms to 4-Series
Diameter: 20 mm
Height: 16.6 mm
Pin diameter: 1.5 mm

O2/M-100 Oxygen Sensor (O2 Sensor) Applications
? Safety and Environmental Control
? For Portable Gas Detectors
? Biogas applications (see MEM3 Background Gas Compatibility)

O2/M-100 Oxygen Sensor (O2 Sensor) Performance Characteristics
Performance data conditions: 20°C, 50% RH and 1013 mbar

Nominal Range
0 - 30 ppm
Maximum Overload
100 ppm
Expected Operation Life
>3 years in air
Output Signal
1.6 to 2.6 mA in ai
Sensitivity
100 ± 24 μA/%
Resolution
0.05%
T90 Response Time
< 20 sec
Temperature Range
-20°C to 50°C
Temperature Coefficient
0.3% signal / °C
Pressure Range
Atmospheric ± 20%
Pressure Coefficient
No data
Relative Humidity Range
15 % to 90 % R.H. non-condensing
Baseline in pure Nitrogen
0.1% equivalent
Expected Long Term Output Drift
< ±4% signal / 3 years
Recommended Load Resistor
10 Ohm
Bias Voltage
-600 mV
Repeatability
< 2 % of signal
Output Linearity
Linear

O2/M-100 Oxygen Sensor (O2 Sensor) Physical Characteristics
Weight
~ 5.4 g
Position Sensitivity
None
Storage Life
Six months in container
Recommended Storage Temperature
5°C - 20°C
Warranty Period
12 months from date of dispatch
Conformity to RoHS directive
RoHS compliance
