Pen Style Gas Detector for Methane, LPG, Combustible Gas - BX166

Product Specification

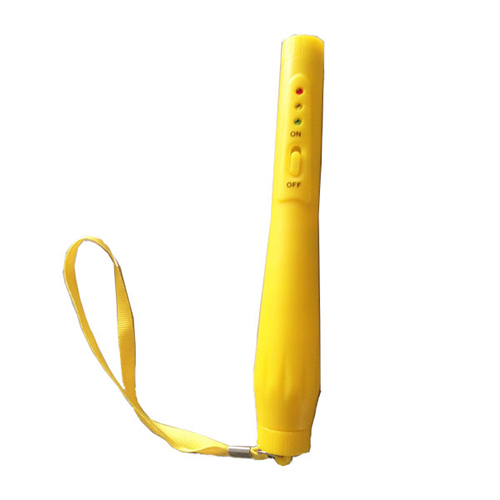

BX166 Pen Style Gas Detector for Methane, LPG, Combustible Gas With plastics cover

Description:

BX166 series gas detector is specially used for detecting combustible gas leakage. With high-sensitivity and reliable catalytic gas sensor, it is suitable to home, industrial and other environment with methane and propane combustible gas.

The detector has the visual and audible indication for fault, low battery and alarm. It has fashionable appearance, easy to carry and operate.

Features:

- Auto zero calibration

- Fast response and resume

- Easy to operate

- Variety sound for different status

- With small zero drift and large range of operating temperature

Specifications:

Gas detected: natural gas (methane), LPG (propane, butane) etc. combustible gas.

Range: 0-100%LEL

Sampling: Natural diffusion

Operating temperature: -20'C-55'C

Operating humidity: <95%RH

Operating voltage: DC3V (two 1.5V AA batteries)

Operating current: 139mA

Low alarm: (20 +/-5) %LEL

High alarm: (50 +/-10) %LEL

Response time: <5s

Alarm method: Visual and audible alarm

Sound: >=65dB

Notices:

- Avoid falling it from high place or serious shock.

- Low voltage may affect the sensitivity. Please replace the batteries once the voltage is low.

- Please activate the product in clean air. If the detector is activated in the environment above 30%LEL, the detector may indicate sensor fault. You need to reactivate the detector in clean air.

- Please operate it according to the above instruction.

- Dont store the detector in the environment with causticity gas.

- Dont put outside force on the Ex net to avoid distortion.
