Product Specification

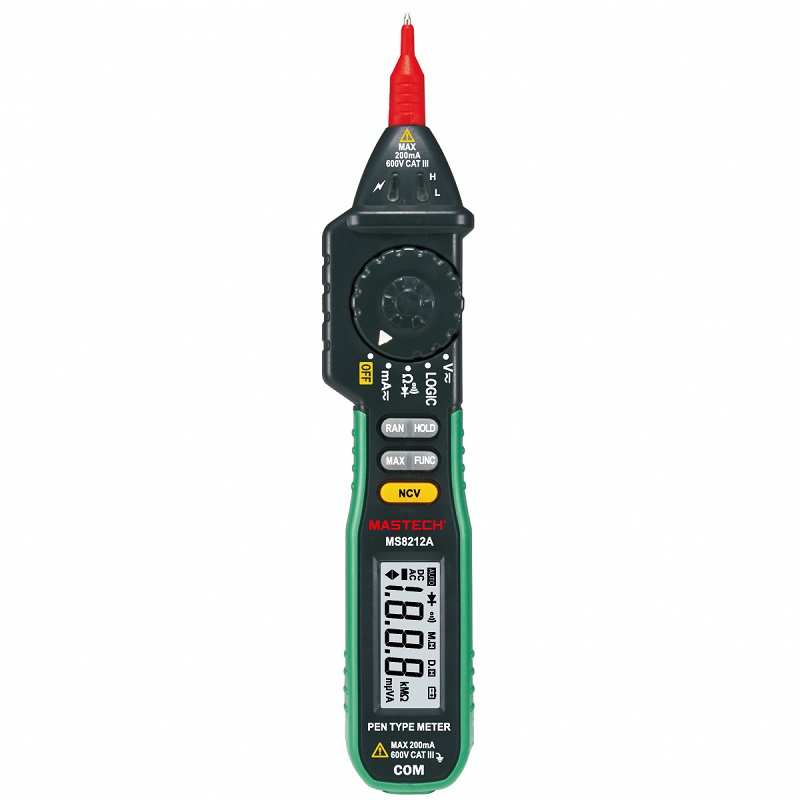

MS8212A Pen-type Digital Multimeter Overview
Accuracy is specified for a period of year after calibration and at 18℃ to 28℃(64℉ to 82℉) with relative humidity to 75%.

? Environment conditions: 600V CAT III
? Pollution degree: 2
? Altitude < 2000m
? Operating temperature: 0℃ to 40℃ (32℉ to 122℉) (<80%RH, <10℃ non-condensing)
? Storage temperature: -10℃ to 50℃ (10℉ to 122℉) (<70%RH, battery removed)
? Max. Voltage Between Terminals And Earth Ground: 600V DC or AC
? Auto range and manual range.
? Display: 20 mm LCD
? Max. Show Value: 1999 (3 1/2)
? Polarity indication: " - " indicates negative polarity.
? Over range indication: Display "OL"
? Sampling time approx. 0.4 second
? Unit showing: Showing of function and electrical capacity.
? Low battery indication: '  ' displayed
? Fuse protection: FF400mA H 600V
? Automatic power off time: 15 min.
? Power supply: 1.5V x 2 AAA Batteries
? Dimension (L x W x H): 222 x 43 x 29mm
? Weight: approx. 129g (including battery)

MS8212A Pen-type Digital Multimeter Features
? Display 2000 counts
? Auto & Manual Ranging
? Auto Power Off
? Diode Open Voltage 1.5V
? Maximum Value Hold
? Data Hold
? Low Battery Display
? Continuity Buzzer <50±20Ω
? NCV Detection >50V AC
? Logic Level Test
? Double Molding

MS8212A Pen-type Digital Multimeter General Specifications
? Power Supply: 2 x 1.5V AAA Batteries
? Product  Size: 238 x 43 x 29mm / 9.37 x 1.7 x 1.1"
? Product Weight: 112g/0.28lb
? Certificate: CE / ETL / RoHS
? Safety Rating: CATIII 600V

MS8212A Pen-type Digital Multimeter Specifications
