Personal Air Quality Monitor - AS520

Product Specification

AS520 Personal Air Quality Monitor

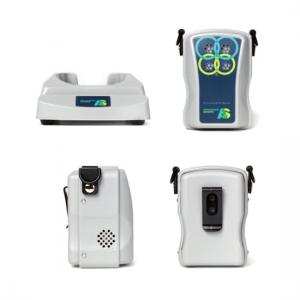

A wearable air quality monitoring system that makes use of a complementary range of sensing technologies to provide a complete and reliable assessment of the air quality in the immediate vicinity of the wearer.

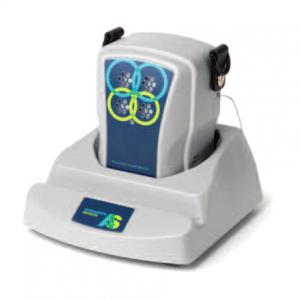

Electrochemical cells, a laser optical particle monitor, temperature and humidity sensors are included in the system, which also incorporates a highly-sensitive GPS receiver and 3 axis accelerometer. A microphone is fitted to monitor ambient noise. A basestation provides a docking unit to store the sensor unit at night and to allow access to a regulated 12V supply to power the battery charging circuit.The basestation is fitted with a GPRS modem, patch antenna and SIM card, which are used to transmit the data that are saved on the unit during the day to a central monitoring site.

AS520 Personal Air Quality Monitor Specification
? accurate electrochemical cells (Alphasense A4) monitoring CO, NO, NO2, and O3. Other sensors available on request.
? optical particle counter (Alphasense).
? temperature and relative humidity sensor (Atmospheric Sensors).
? MEMS 3-axis accelerometer to detect movement.
? GPS module with integrated antenna
? microphone to detect ambient noise level.
? high-capability 32-bit ARM microcontroller.
? bi-colour LED to indicate battery state-of-charge and correct operation of the unit.
? battery and compatible charger circuit to give 24 hours running and some contingency (two 18650 lithium-Ion cells).
? SD Card storage up to 32GB.
? supplied with a shoulder strap and belt clip so can be worn in different ways.
