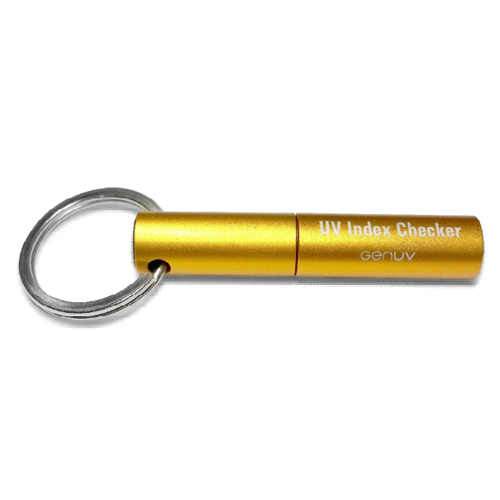

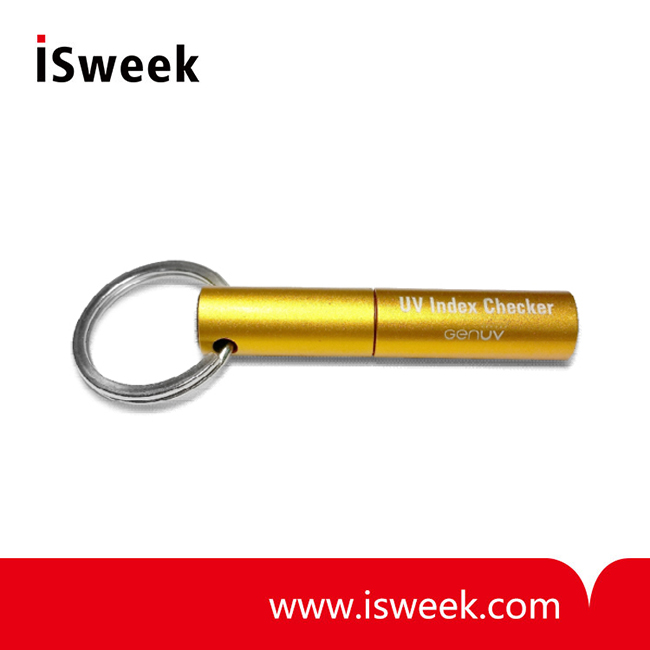

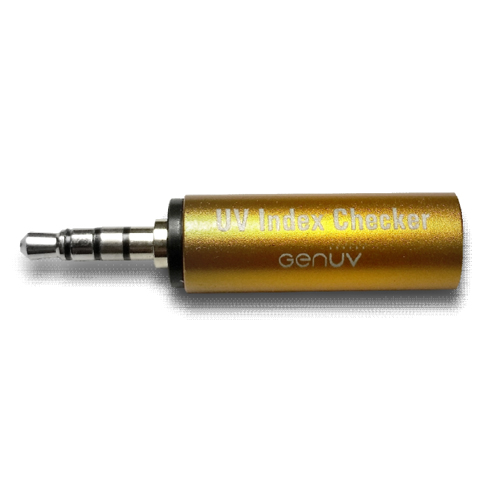

Portable and Ultra-Small Size Smart UVI Checker - GUVA-S12SC-LM01
? Workable Humidity: < 80%RH
? Operating Temperature: -20 ~ 50℃
? UV Index Display?: 0 ~ 11+ UVI?
? Delay Time?: 10 sec
? UVI Checker used like an ear jack (No need for battery)
? Portable and Ultra-Small Size
- Model Number: GUVA-S12SC-LM01
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
GUVA-S12SC-LM01 Smart UVI Checker Features
? UVI Checker used like an ear jack (No need for battery)
? Portable and Ultra-Small Size
GUVA-S12SC-LM01 Smart UVI Checker Material
Case : Aluminum

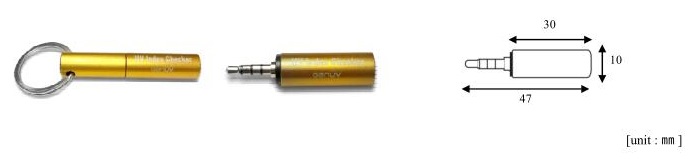

GUVA-S12SC-LM01 Smart UVI Checker Physical Dimensions & Connection
GUVA-S12SC-LM01 Smart UVI Checker Absolute Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
Remark |
|
Storage Temperature |
Tsp |
-20 ~ 60 |
℃ |
|
|
Workable Humidity |
RH |
< 80 |
% |
|
|
Operating Temperature |
Top |
-20 ~ 50 |
℃ |
|
GUVA-S12SC-LM01 Smart UVI Checker Mechanical Data
|
Parameter |
Value |
Unit |
Remark |
|
Weight |
6 |
g |
|
|
Size |
10Φ x 30 (include Ear Jack : 47mm) |
mm |
|
GUVA-S12SC-LM01 Smart UVI Checker Electrical Characteristic (at 25 ℃)
|
Parameter |
Symbol |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
||||
|
UV Index Display |
|
0 |
|
11+ |
UVI |
|
|
Delay Time |
Tr |
|
10 |
|
sec |
|
