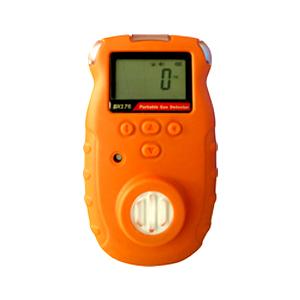

Portable Single-Gas Detector - BX176

Model Number: BX176

Quantity:: - +

Mouse over image to zoom

Product Specification

BX176 Portable Single-Gas Detector Features

Advanced MCU control with low power consumption;
Large LCD display;
Adjustable low and high alarm level;
Adjustable calibrating level;
High concentration protection for combustible gas;
Self test for the combustible gas sensor;
Low battery indication;
Real time clock display;
Replaceable sensor module;
Self-adjustment function
Visual and audible alarm with vibration;
Data logging and uploading;
STEL and TWA alarming for toxic gases
Advanced self-examination and self-renovation function
Password management to avoid wrong operation;
Intrinsically safe.

BX176 Portable Single-Gas Detector Specifications

Range: See attached table 1.
Gas Detected: combustible gas (CH4,C3H8,H2) and toxic gas, oxygen, Other rare toxic gas like ammonia , NO,PH3,NH3,NO2,HCN, SO2 etc also available, Can be specified by the Customer in advance.,
Alarm set points: see attached table 1.
Accuracy: <= +/-5% F.S.                Response time: T<30s
Indication: LCD indicates the time and state
Indication of alarm, fault and low voltage with LED, sound, vibration
Operating Environment:
Operating temperature -40^oC~70^oC (for combustible gas)
Operating temperature:     -20^oC~50^oC (for toxic gas)
Humidity: <95%RH non-condensing
Operating voltage: DC3.7V Li-ion battery 1300mAh
Working time: Combustible gas: 8h continuously; Toxic gas: >=300h continuously
Charging time: 4h~6h
Sensor life: 2 years
IP rating: IP65
Weight: about 125g (including battery but without accessories)
Dimension: 104.0mmX60.8mmX30.5mm
