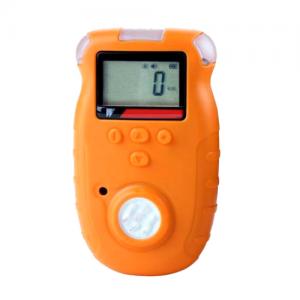

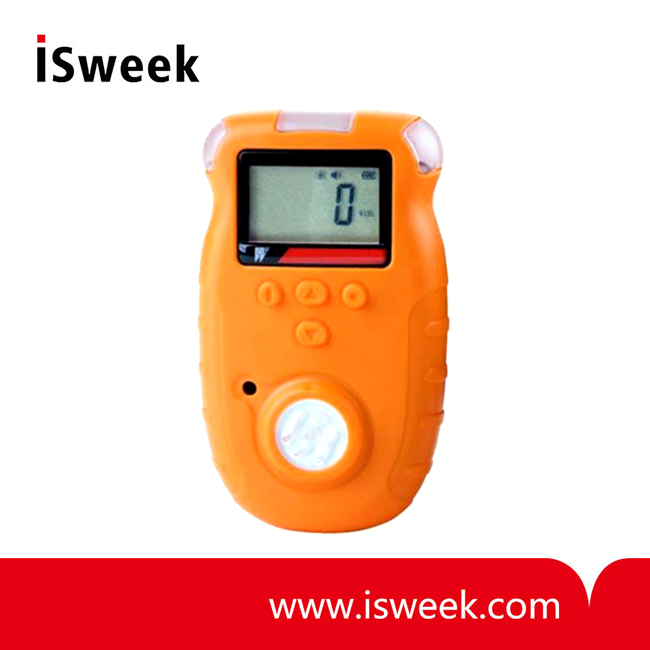

Portable Single Gas Detector - IX176

? Accuracy?: ±5%FS?
? Response time?: T90 < 30s?
? Working environment?: -20 to 50°C, 95% RH (no dew)?
? Power source?: 3.6V DC Rechargeable Li-on battery 1,800Ah?
? Charging time?: 4~6 hours?
? Working time?: ?≥10h continuously (without alarming)?
? Gas sensor life?: 2 years?
? Protection grade?: ?IP65?

  • Model Number: IX176
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Portable Single Gas Detector
  • Portable Single Gas Detector
Mouse over image to zoom
Share:

Product Specification

IMR IX176 Single Gas Detector


The IX176 portable single gas detector can make continuous detection to combustible and toxic gases. It is suitable for combustible and toxic gas leakage detection in underground pipe or mines, and keeps the workers safe, prevents the facilities from being destroyed.

The detector, adopting excellent-quality sensor, makes detection in the way of natural diffusion. It has good sensitivity and reproducibility. The detector adopts embedded MCU controller, easy to operate. The shell adopts special high strength material and anti-smooth rubber, with the characters of water-proof, explosion-proof and dust-proof. The alarms are visual and audible with vibration.

IX176 Single Gas Detector Gas Ranges:

Model

Range

L-Alarm Range

H-Alarm Range

L-Alarm

H-Alarm

IX176-CH4

0-100%LEL

10%LEL~5%LEL

25%LEL~80%LEL

20%LEL

50%LEL

IX176-C3H8

0-100%LEL

10%LEL~25%LEL

25%LEL~80%LEL

20%LEL

50%LEL

IX176-H2

0-100%LEL

10%LEL~25%LEL

25%LEL~80%LEL

20%LEL

50%LEL

IX176-H2

0-1000ppm

20ppm~150ppm

150ppm~500ppm

35ppm

250ppm

IX176-H2S

0-100ppm

5ppm~15ppm

15ppm~30ppm

10ppm

15ppm

IX176-CO low

0-1000ppm

25ppm~100ppm

100ppm~500ppm

35ppm

200ppm

IX176-CO high

0-2000ppm

25ppm~100ppm

100ppm~500ppm

35ppm

200ppm

IX176-O2

0-30%vol

16%vol~19.5%vol

22.5%vol~24%vol

19.5%vol

23.5%vol

IX176-C2H5OH

0-100%LEL

10%LEL~25%LEL

25%LEL~80%LEL

20%LEL

50%LEL

IX176-NH3

0-100ppm

20ppm~30ppm

30ppm~70ppm

25ppm

50ppm

IX176-CL2

0-20ppm

3ppm~10ppm

5ppm~15ppm

5ppm

10ppm

IX176-SO2

0-100ppm

1ppm~3ppm

3ppm~10ppm

2ppm

5ppm

IX176-NO

0-100ppm

5ppm~30ppm

30ppm~70ppm

2ppm

50ppm

IX176-NO2

0-20ppm

2ppm~5ppm

10ppm~20ppm

2ppm

10ppm


IX176 Single Gas Detector Specifications
Gas sampling method
natural diffusion
Gas sensor type
catalytic (for combustible gas) and electrochemical (for H2S, CO, O2, NH3, CO2,SO2)
Accuracy
±5%FS
Response time
T90 < 30s
Indication
LCD displays real-time and system status
LED, audio and vibration alert for gas leakage, fault and low voltage
Working environment
-20 to 50°C, 95% RH (no dew)
Power source
3.6V DC Rechargeable Li-on battery 1,800Ah
Charging time
4~6 hours
Working time
≥10h continuously (without alarming)
Gas sensor life
2 years
Explosion-proof grade
Exia II CT4
Protection grade
IP65
Weight
200g (with battery)
Dimensions
104 x 60.8 x 30.5mm
Communication
RS232/USB
Internal Memory - 2,000 records
