Pre-calibrated Module for Carbon Dioxide - CDM4161A

Product Specification

CDM4161A - Pre-calibrated module for carbon dioxide



Features:
* Compact size
* High selectivity to CO2
* Maintenance free
* Low power consumption
* Pre-calibrated
* Low cost

Applications:
 * Indoor air quality control

Specification:

Item	Specification
Product name	Carbon dioxide (CO2) sensor module
Model No.	CDM4161A
Detection range	400 ~ 4,000ppm
Sensor	Solid state electrolyte type
Accuracy (*1)	approx. ±20%
Power supply	5.0±0.2V DC regulated
Power consumption	300mW (typical)
Inrush current	100mA (max)
Operational temperature & humidity range	-10? ~ +50?C, 5~95%RH (avoid condensation)
Storage temperature & humidity range	-20? ~ +60?C, 5~90%RH (pack in a moisture-proof bag)
Warm-up time	2 hours
CO2 concentration signal (*2)	VCONC=CO2 conc/1000 (0.4~4.0V DC)
Control signal	ON: HIGH output (when CO2 conc. exceeds 1000ppm) OFF: LOW output
Trouble signal	LOW output
Reset switch	Establishes the ambient CO2 concentration as 400ppm by HIGH input signal

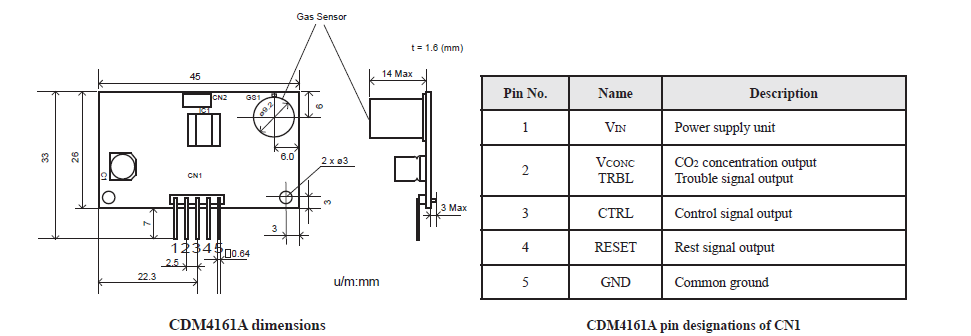

Dimensions	45 x 26 x 17mm (45 x 33 x 17mm incl. CN1)
Weight	approx. 6g

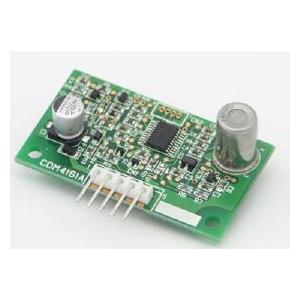

CDM4161A is a highly miniaturized pre-calibrated CO2 unit which uses Figaro's own compact and low-power consumption solid electrolyte CO2 sensor. Due to Figaro’s proprietary idea for signal processing with a microcomputer, no maintenance is required for this module. When compared with traditional CO2 sensor modules using IR sensors, Figaro’s CO2 module is much more cost effective, making this module the ideal choice for indoor air quality control systems.
