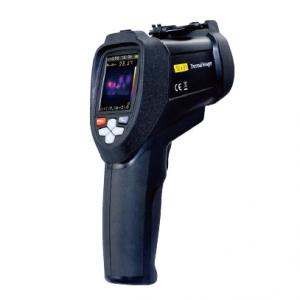

Professional InfraRed 32x31 pixels Imager Thermometer - DT-9868

2.2" TFT 320x240 Pixels color LCD display;
IR temperature measurement with resolution 32x31 pixels;
Image Capture Frequency 9Hz;
Thermal Sensitivity (NETD) ≤150 mK;
Hot Spot and Cold Spot Tracking;
Visual Camera & Images Capture (BMP);
MicroSD memory card;

Model Number: DT-9868

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

DT-9868
Performance InfraRed 32x31 pixels Imagers Thermometer
DT-9868 is a Professional InfraRed 32x31 pixels Imager Thermometer with 2.2” color TFT LCD display; a microSD memory card for capturing images (BMP) for viewing on your PC; providing fast, easy and accurate readings for most surfac
iRTP software
for InfraRed Thermometer

Meterbox iRTP smartview software provides a professional report with table and chart, details including data analysis, alarm indication, fault doubt share, inspector management, application scene, fast inspection, scene mode, equipment maintenance and quality inspection.

The smart choice

? The default usage scene

? Data analysis

? Table and chart display

? Alarm indication

? Fault doubt share

? Inspector management

? Fast inspection

? Scene mode

? Quipment maintenance

? Quality inspection

Features:
2.2" TFT 320x240 Pixels color LCD display;
IR temperature measurement with resolution 32x31 pixels;
Image Capture Frequency 9Hz;
Thermal Sensitivity (NETD) ≤150 mK;
Hot Spot and Cold Spot Tracking;
Visual Camera & Images Capture (BMP);
MicroSD memory card;
Date/time setup controls, Adjustable emissivity & trigger lock;
Li-ion rechargeable battery;
SB interface to smartphone / PC;
Language selection: English, Chinese;
Meterbox IRTP & cloud service;

Size (H x W x D): 125mm x 58mm x 205mm
Weight: 494g

Specifications

Imaging and optical data
Thermal sensitivity (NETD)	0.15℃ (0.27℉) @ 1Hz and 100℃
Image frequency	9Hz
Detector data
Detector type	Uncooled hyper-thin pyroelectric ceramic
Spectral range	6.5-14μm
IR resolution	32x31 pixels
Display	2.2" TFT 320x240 pixels color LCD display
IR temperature measurement
Object temperature range	-20℃ to +300℃（-4℉ to +572℉)
Accuracy	±2% ±2℃ as tested
Spot	Hot spot and cold spot tracking
Emissivity adjustable	0.10~1.0 adjustable
Micro SD memory card	MAX. support 8GB
Field of view	38°x 38°
Color palettes	Hot metal/ironbow/rainbow/rainbow high contrast/grayscale
Image storage format	Standard BMP, including measurement data, on memory card>1000 pictures
