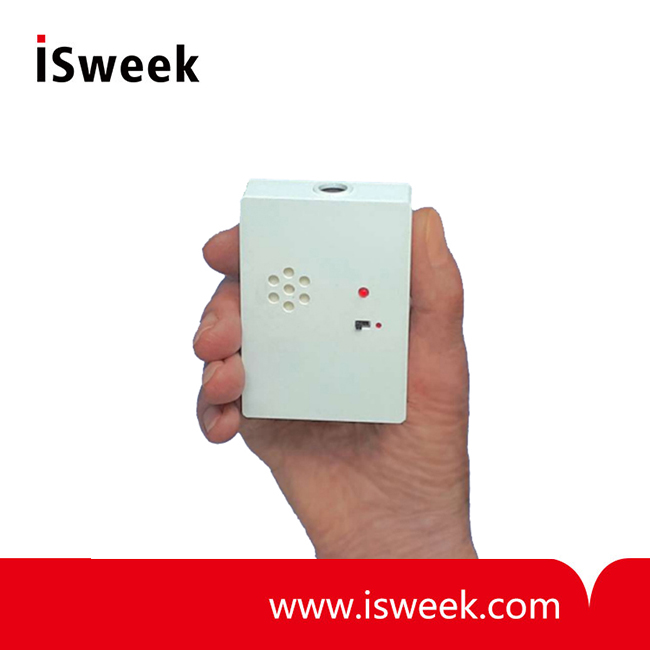

Radiation Detector - BG500
The BG500 is a portable radiation detector that is easy to use and provides real time feedback on nuclear radiation activity. A Teviso BG51 solid-state PIN diode sensor is used to detect beta radiation (electrons), gamma radiation (photons) and X-rays.
- Model Number: BG500
- Data Sheet:
- Quantity:
- - +
Product Specification
Description
The BG500 is a portable radiation detector that is easy to use and provides real time feedback on nuclear radiation activity. A Teviso BG51 solid-state PIN diode sensor is used to detect beta radiation (electrons), gamma radiation (photons) and X-rays.
Application
The BG500 radiation detector is recommended for the following applications, among others:
1.Education on nuclear physics: Measurement of the amount of ionising radiation emitted by radioactive materials. Experiments to study the properties of nuclear radiation.
2.Medical: Detection and measurement of the presence of radiation and radioactive material.
3.Environmental monitoring: Monitoring the environment for radioactive contamination, e.g. in soil, air and water.
4.Personal radiation dosimetry: Checking the radiation exposure of people working in radiation-relevant industries such as medical facilities, research laboratories and nuclear power plants.
5.Safety Inspection: Examination of persons and cargo for radioactive substances.
6.Alerting: Used by first responders and safety officers to monitor harmful radiation in real time.
Specifications
|
Measurement Range interpretation) |
0.2 μSv/h to 1200 μSv/h (by acoustic 0.1 μSv/h to 100 mSv/h (using Signal Interface) |
|
Pulse Rate vs. Radiation Rate |
5 ppm (pulse per minute) ±15% for 1μSv/h |
|
Sensor Energy Response |
70 keV to beyond 2 MeV |
|
Power Supply |
9 V Block-Battery |
|
Supply Current |
8 mA |
|
Operating Time |
150 hours with 9 V quality battery |
|
Operating Temperature Range |
-20℃ to 50℃ |
|
Dimensions |
W : 57mm L : 78mm H : 20mm |
|
Weight |
85g |
