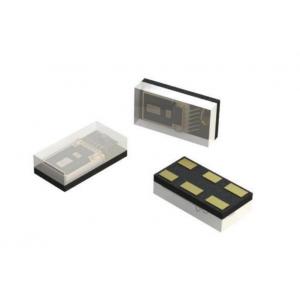

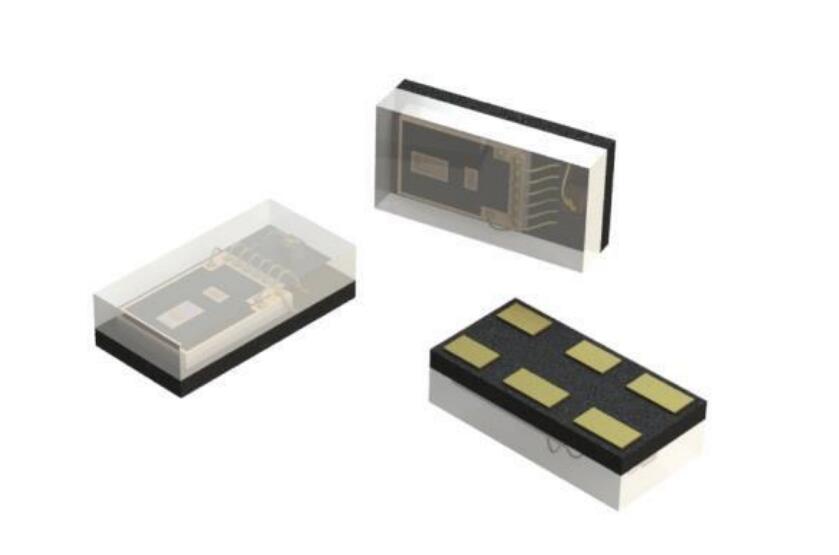

Range sensor IC - WH4535V
? Tiny Package L2.0mm x W1.0mm x H0.5mm.
? Small pitch designed for 1.7mm circular sensor aperture size.
? 1.8V power supply with 1.8V I2C bus.
? Total active current under 10uA@100ms and 10bits (VCSEL current included).
? Idle mode current 0.7uA.
- Model Number: WH4535V
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
The WH4535V is a light to digital converter which combines an advanced proximity sensor and a high efficiency infra VCSEL light.
The WH4535V is a miniature optical land grid array module integrated with a proximity sensor and a 940nm IR VCSEL.
The tiny package size is 2.0mm x 1.0mm x 0.5mm.
Proximity sensor (PS) built-in an 940nm optical filter for ambient light immunity, so PS can detect reflected IR light with high precision and excellent rejection into the sensor.
Features：
? Tiny Package L2.0mm x W1.0mm x H0.5mm.
? Small pitch designed for 1.7mm circular sensor aperture size.
? 1.8V power supply with 1.8V I2C bus.
? Total active current under 10uA@100ms and 10bits (VCSEL current included).
? Idle mode current 0.7uA.
? Sleep mode current 0.7uA.
? 940nm VCSEL IR emitter is driven 12mA.
? High crosstalk and ambient light cancellation equivalent to 220 resolution.
? ADC resolution selectable for 10/12/14/16 bits.
Applications：
? True-wireless stereo earbuds
? Glasses
? Watches
