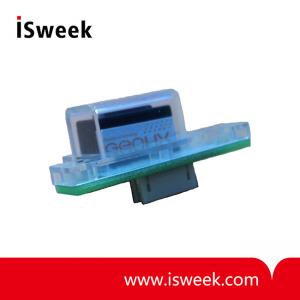

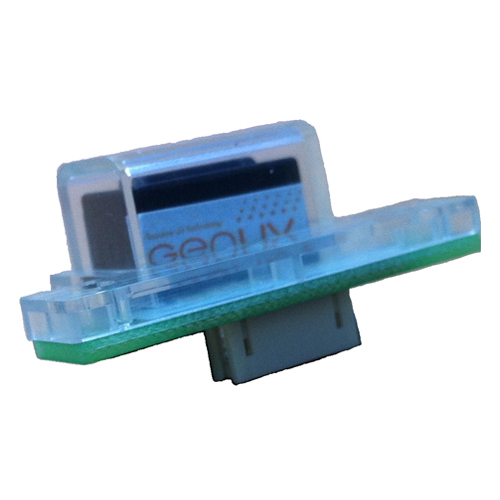

Reflective UV Sensor - GenUV-L365P-MM
- Supply Voltage: 1.8 - 5.5V
- Detection Range: 400- 1000 nm
- Light Emission Wavelength - 365nm
- Emitting part- Visible range absorbing filter
- Receiving part - UV absorbing filter
- Responding to fluorescence ink
- Model Number: GenUV-L365P-MM
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
GenUV-L365P-MM Reflective UV Sensor Features
Light Emission Wavelength - 365nm
Emitting part- Visible range absorbing filter
Receiving part - UV absorbing filter
Responsing to fluorescence ink
GenUV-L365P-MM Reflective UV Sensor Applications
Money detecting
Counterfeits bill detecting

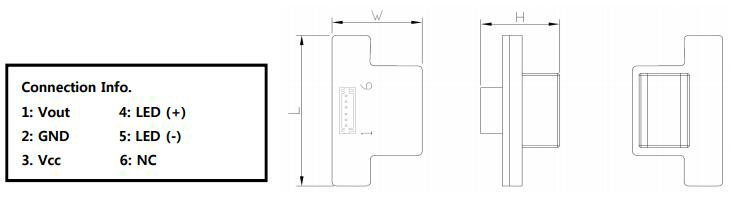

GenUV-L365P-MM Reflective UV Sensor Outline Diagrams
GenUV-L365P-MM Reflective UV Sensor Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Remark |
|
Storage Temperature |
Tst |
-40 |
|
90 |
℃ |
|
|
Operating Temperature |
Top |
-30 |
|
85 |
℃ |
|
|
Supply Voltage |
VCC |
|
|
5.5 | VDC |
|
|
Soldering Temperature |
Tsol |
|
|
260 | ℃ | Within 10 sec |
GenUV-L365P-MM Reflective UV Sensor Electro-Optical Characteristics (at 25 ℃)
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Remark |
|
Supply Voltage |
VCC | 1.8 |
|
5.5 | V | DC |
|
Supply Current |
IQ |
|
10 | 20 | mA |
|
|
Emission Wavelength |
λ |
|
365 |
|
nm |
IF=10? |
|
Detection Range |
P | 400 |
|
1000 | nm |
< 5% transmittance |
|
Output Voltage |
VO |
|
|
10 | mV |
No object, in dark |
|
|
2.7 |
|
V |
90% reflector paper |
||
|
Detecting distance |
d |
|
2 |
|
mm |
Max. Vout |
