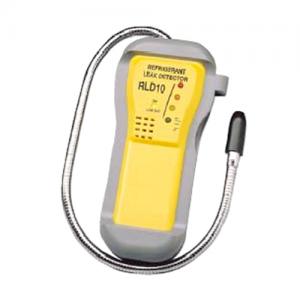

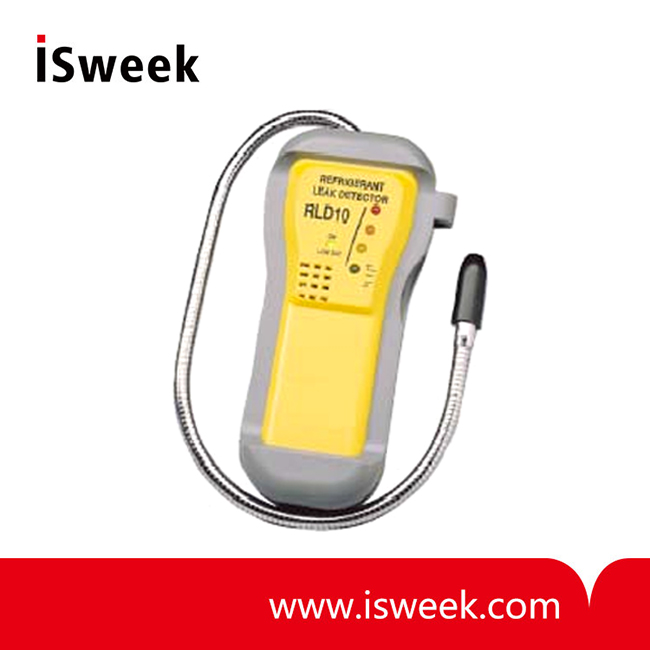

Refrigerant Leak Detector - RLD10

? Power Supply?: 9V Alkaline battery?
? Battery life?: Approx. 8 hours?
? Sensor?: Advanced ionization detection?
? Sensitivity?: .5 oz. per year R134A?
? Warm-Up?: < 10 seconds?
? Response time?: < 1 second?
? Ambient Temperature?: 32 to 102°F (0 to 40°C)
? Ambient Humidity: 0-80% RH (non condensing)?

Model Number: RLD10
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RLD10 Refrigerant Leak Detector Description
Detect leaking refrigerant using the high sensitivity mode then switch to the low sensitivity mode to pinpoint its source. If background noise makes the audible tick hard to hear, you can count on the color scaled LED indicators.

RLD10 Refrigerant Leak Detector Features
? Audible tick rate
? LED panel indicates refrigerant leak concentration
? Two position sensitivity selector
? Auto zeros when turned on
? Long gooseneck probe
? One-hand operation
? Automatically detects all existing halogen refrigerants and blends
? Fast response time (< 1 second)

RLD10 Refrigerant Leak Detector Specifications

Power Supply	9V Alkaline battery
Battery life	Approx. 8 hours
Sensor	Advanced ionization detection
Sensitivity	.5 oz. per year R134A
Warm-Up	< 10 seconds
Response time	< 1 second
Gooseneck	18" (450mm)
Ambient conditions	32 to 102°F (0 to 40°C) 0-80% RH (non condensing)
Level Indicators	Audible: tick rate Visual: LEDs
