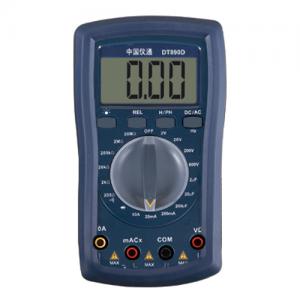

Self-recover Protection Digital Multimeter - DT890D
? 3 1/2 digit digital display
? 17 measuring ranges
? Self-recover protection in mA/Cx ranges
? Voltage,current and frequency measuring one–key switch
? Resistance, diode and continuity tests
? Backlight turn off delay, automatically
? Relative value measurement(REL)
? Data Hold/ Peak value Hold
- Model Number: DT890D
- Quantity:
- - +
Product Specification
DT890D Digital Multimeter General Feature
? 3 1/2 digit digital display
? 17 measuring ranges
? Self-recover protection in mA/Cx ranges
? Voltage, current and frequency measuring one–key switch
? Resistance, diode and continuity tests
? Backlight turn off delay, automatically
? Relative value measurement(REL)
? Data Hold/ Peak value Hold
DT890D Digital Multimeter Accessories
1 x Test leads set, 1 x 10A current adapter, 1x yellow Holster,
3 AAA x batteries, 1x user’s manual
Dimension: 148 x 78 x 35mm
Weight: 250g (include batteries)
DT890D Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Resoltion |
Accuracy |
|
DC voltage |
2V/20V/200V/600V |
100μV |
±(0.8%+3d) |
|
AC voltage |
2V/20V/200V/600V |
100μV |
±(1.2%+3d) |
|
DC current |
20mA/200mA/10A |
10μA/10mA |
±(1%+3d) |
|
AC current |
20mA/200mA/10A |
10μA/10mA |
±(1.5%+3d) |
|
Resistance |
200/2k/20k/200k/2M20MΩ |
100mΩ |
±(0.8%+3d) |
|
capacitance |
2μF/20μF/200μF |
1nF |
±(4%+3d) |
