SemeaTech 4-Electrode NH3 Sensor - 7E4-NH3-10

Product Specification

Product Description：

    This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration NH3 gas with ultra-high resolutions. The design optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect ozone variations at parts per billion (ppb) levels.

Performance Characteristics：

Environmental：

Life Time：

Intrinsic Safety Data：

Physical Characteristics：

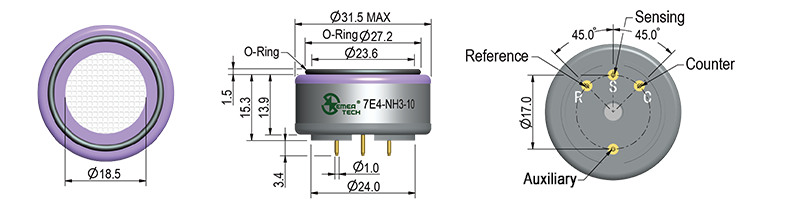

Product Dimensions：

All dimensions in mm

All tolerances ±0.10mm unless otherwise stated

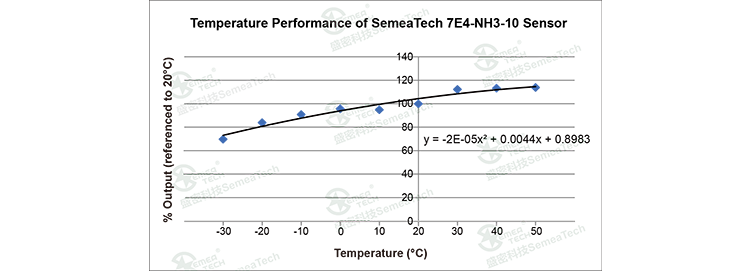

Temperature Data：

Safety Note：

    The sensor is designed to be used in certain instruments for life critical applications. To ensure the sensor functions per its specifications inside the instrument, it is required to read the instrument user's guide carefully and comply with the calibration procedures by using certified target calibration gas before each use. Failure to do so may cause serious injury and fatality. Please do not open the sensor plastic enclosure because the electrolyte and other chemicals stored inside are harmful.

    It is highly recommended for customers to validate the sensor performance using this document as a reference for their product designs or applications.
