SemeaTech Commercial Gas Sensor - WC Air Quality Sensor

This sensor is designed for the measurement of water closet/restroom odor for smart city applications.

  • Model Number: WC Air Quality Sensor
  • Data Sheet: Date Sheet File
Quantity:
- +
  • SemeaTech  Commercial Gas Sensor
Mouse over image to zoom
Share:

Product Specification

Product Description

    This sensor is designed for the measurement of water closet/restroom odor for smart city applications. It is recommended to be used in an environment where temperature and humidity are relatively stable.



Performance Characteristics

Nominal Range

0 ~20 ppm

Sensitivity (20)

0.150 ± 0.035 μA/ppm

Response Time (T90)

 90 s

Zero Signal (20)

< ±0.4 μA

Baseline Shift (-20~ 50)

< 2 ppm

Resolution

0.1 ppm

Linearity

Linear up to 20 ppm

Bias Voltage

0 mV

Temperature Range

-40~ 50

Pressure Range

1 ± 0.1 atm

Humidity Range

15% ~ 90%RH non-condensing



Reliability and Lifespan

Long Time Output Drift

< 2% signal/month

Expected Operating Life

min. 2 years in clean air



Storage

Recommended Storage Temp

10~ 30

Storage Life

6 months in original packaging

Warranty

12 months



Physical Characteristics:

Housing Material

ABS

Weight (Nominal)

5 g

Orientation

None

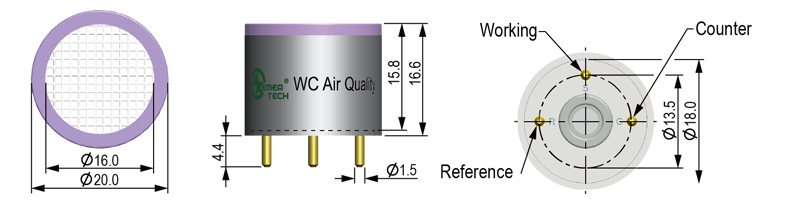

Product Dimensions:



All dimensions in mm

All tolerances ±0.10mm unless otherwise stated

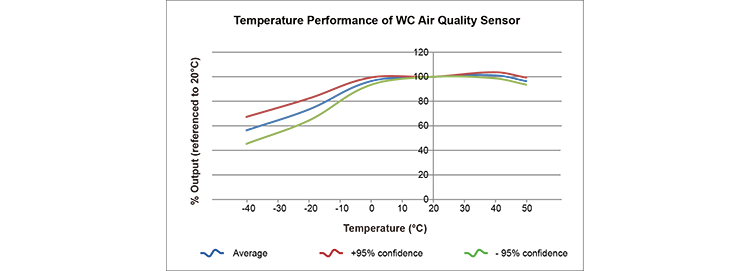

Temperature Data:





Safety Note:

    This sensor is designed to be used in certain instruments for life critical applications. To ensure the sensor functions per its specifications inside the instrument, it is required to read the instrument user's guide carefully and comply with the calibration procedures by using certified target calibration gas before each use. Failure to do so may cause serious injury and fatality. Please do not open the sensor plastic enclosure because the electrolyte and other chemicals stored inside are harmful.

    It is highly recommended for customers to validate the sensor performance using this document as a reference for their product designs or applications.
