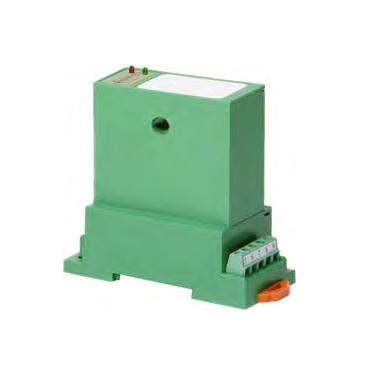

Single Element AC Current Digital Current Transducer - CRD4110

Product Specification

The CRD4100 Series Data Stream Digital Current Transducers are designed for applications where AC current waveforms are not purely sinusoidal. The digital technology is used to measure voltage, current, power frequency and energy in single and three phase designs. The data is streamed over an RS485 IEEE bus which enables multiple transducers to communicate thru a single master connection. These advanced sensors are ideal for entire plant or zone monitoring. Also, the communication alagorithm can be pre-ordered with ASCII based control or modified MODBUS based control.?

CRD4110?Digital Current Transducer?Features
? Heart Beat and Communication Indicators
? Pre-Calibrated with Non-Volatile Memory
? RS485 Output
? Optional MODBUS Output
? Current Input up to 25 AAC
? Single Phase
? DIN Rail or Surface Moun

CRD4110?Digital Current Transducer?Specifications
? Basic Accuracy: 0.5%
? Frequency Range 20 Hz to 5 KHz
? Calibration True RMS Sensing
? Continuous Overcurrent: 4 times Full Scale
? Isolation Voltage: 2500 VDC
? Supply Voltage: 24VDC +/- 10%
? Supply Power: Less than 250 mWatts
? Output ESD Protection: +/- 15KV
? Output Resolution: 16 BIT
? Operating Temperature: 0 to 60 ℃

CRD4110?Digital Current Transducer?Applications
? Sub-Metering Energy Measurement
? Motor Loads
? Remote Monitoring
? Automatic Control Systems
? Load Shedding

CRD4110?Digital Current Transducer?Sensing
? True RMS Current, Each Phase
