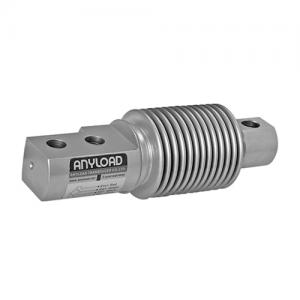

Single Ended Beam Load Cell - 563RS
? Material: Stainless steel
? Rated Capacities: 5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 350kg, 500kg
? Full Scale Output: 2mV/V ± 0.25%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP68
? NTEP, CE, RoHS and Ex certified
? Measurement Ukraine certified
- Model Number: 563RS
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
563RS Single Ended Beam Load Cell
563RS Single Ended Beam Load Cell Features
? Material: Stainless steel
? Rated Capacities: 5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 350kg, 500kg
? Full Scale Output: 2mV/V ± 0.25%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP68
? NTEP, CE, RoHS and Ex certified
? Measurement Ukraine certified
563RS Single Ended Beam Load Cell Specification
|
Full Scale Output |
2.0 mV/V ±0.25% |
|
Zero Balance |
Cap.≤20kg: ±0.05 mV/V Cap.>20kg: ±0.02 mV/V |
|
Deflection at Emax |
0.27 - 0.33mm |
|
Non-linearity |
<±0.017% |
|
Repeatability |
<±0.017% |
|
Hysteresis Error |
<±0.017% |
|
Creep in 30 min. |
<±0.023% |
|
Input Resistance |
400Ω±20 |
|
Output Resistance |
350Ω±3 |
|
Element Material |
17-4PH Stainless Steel |
|
Recommended Excitation |
10V (15V Maximum) |
|
Insulation Resistance |
>2 [50V DC] GΩ |
|
Compensated Temperature Range |
-10°C to 50°C / 14°F to 122°F |
|
Safe Overload |
150% of full scale |
|
Breaking Overload |
300% of full scale |
|
Seal Type / IP Rating |
Welded Seal / IP68 |
|
Cable Color Code |
Exc+ Red Exc- Black Sig+ Green Sig- White Shield Bare |

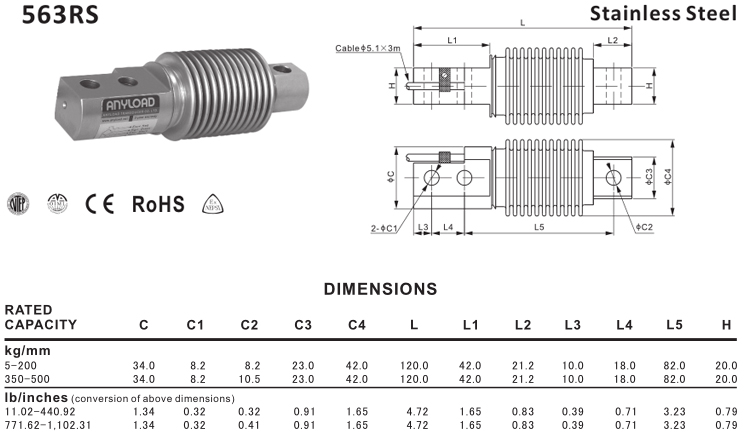

563RS Single Ended Beam Load Cell Part Number
|
Rated Capacity |
Part No. |
Shipping Weight (kg) Approx. |
|
5kg |
563RS-5kg |
0.6 |
|
10kg |
563RS-10kg |
0.6 |
|
20kg |
563RS-20kg |
0.6 |
|
50kg |
563RS-50kg |
0.6 |
|
100kg |
563RS-100kg |
0.6 |
|
200kg |
563RS-200kg |
0.6 |
|
350kg |
563RS-350kg |
0.6 |
|
500kg |
563RS-500kg |
0.6 |
