Product Specification

MP SERIES STATIONARY INSTRUMENTS

MP202 & MP204: Wall-mounted, weatherproof controllers with front door keypad.?Available for 1 to 4 sensor channels.

MP24: 2-channel, rack-mounted version. Compact design allows up to 12 units (24 channels) to fit?into a 19” rack or panel space.

Automated One-Man Calibration.?Simply apply gas and the intelligent controller makes all necessary calibration adjustments!

Three Sensor Types Available: (Solid State, Electrochemical, Catalytic Bead)

Detecting over 150 toxic and combustible gases.

Additional Features Include: Individual digital display

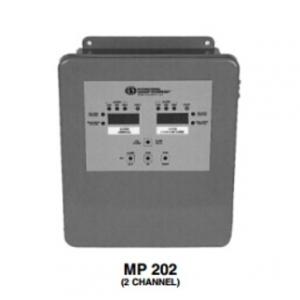

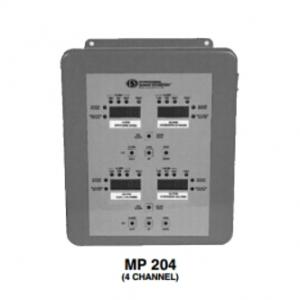

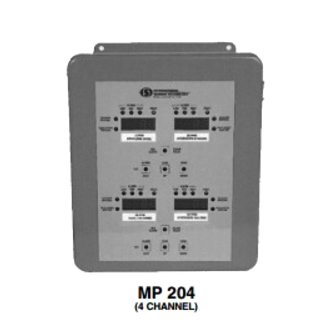

2-Channel MP202 and 4-Channel MP204 Wall-Mounted

The?MP202?and?MP204?are wall-mounted, microprocessor-based control units housed in weatherproof enclosures. The?MP202?is a two-channel controller which can be used for 1 or 2 sensor channels, while the?MP204?is a four-channel controller which can be used for up to 4 sensor channels. A front door keypad enables convenient operation of the controller without the need to open the enclosure. Standard features include: 3 alarm setpoints per channel, digital display per channel, common relays (optional individual relays), operates on 110/220 VAC (autoswitching), and 24 VDC power supply to power sensor transmitters. Both the?MP202?and?MP204?can be used with either our standard sensor transmitter (SM95) or our intelligent sensor transmitter?(4-20IQ).

MP24 RACK/PANEL MOUNTED

The?MP24?is a rack/panel-mounted version of the?MP202. It is a compact control unit which accepts 1 or 2 sensor channels. Up to 12 of these control units will fit into a standard 19" rack or panel space, for a total of 24 sensor channels. Standard features include: 3 alarm setpoints per channel, digital display per channel, choice of individual or common relays, and choice of operating voltages (110/220 VAC or +24VDC). The?MP24?can be used with either our standard sensor transmitter (SM95) or our intelligent sensor transmitter (4-20IQ). Please see below for details.

MP220EX EXPLOSION-PROOF

The MP220EX is a two channel, explosion-proof, wall mounted, control unit rated for use in Class 1, Div. 1, Groups C & D (B optional) hazardous areas. Operation via magnetic wand allows the unit to be operated without opening the cover, thereby ensuring that hazardous areas do not require declassification. Standard features include: 3 alarm setpoints per channel, digital display per channel, common relays (optional individual relays), operates on 110/220 VAC (autoswitching), and 24 VDC power supply to power sensor transmitters. The?MP220EX?can be used with either our standard sensor transmitter (SM95) or our intelligent sensor transmitter (4-20IQ). Please see below for details.
