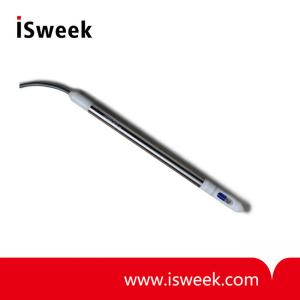

STs Series pH Sensor - 1014 pH

? Combination double-junction electrode measuring 0 to 14 pH
? Large reference half-cell to reduce calibration frequency
? Secondary 0-50°C temperature sensor
? 2-wire, 4-20 mA analog outputs compatible with wide range of dataloggers or remote telemetry units (RTU)
? Narrow diameter (0.75 inches or 1.9 cm) for groundwater monitoring applications
? Low power usage

Model Number: 1014 pH
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Description：

The pHionics STs Series? pH is a dual-output sensor that pairs with a datalogger or RTU for real-time water quality monitoring. A narrow diameter allows the STs Series to go where other sensors cannot while a durable, chemical-resistant housing ensures many years in-use.

All parts, including the cable, are easily replaceable without tools using?pHionics?patented?pHiConn? System, saving frustration and money.

In addition, isolation, differential amplification, and shielding ensure a strong signal with high signal-noise ratios, all while remaining low-power.

These features make our pH sensor well-suited for applications such as groundwater monitoring, wastewater treatment, aquaculture, pollution monitoring, etc.

Highlighted Features：

? Combination double-junction electrode measuring 0 to 14 pH

? Large reference half-cell to reduce calibration frequency

? Secondary 0-50°C temperature sensor

? 2-wire, 4-20 mA analog outputs compatible with wide range of dataloggers or remote telemetry units (RTU)

? Narrow diameter (0.75 inches or 1.9 cm) for groundwater monitoring applications

? Low power usage

Applications：

? Groundwater Monitoring

o Agricultural Runoff

o Mining Pollution

? Industrial Effluent Monitoring

? Wastewater Treatment

? Ballast Monitoring

? Environmental Remediation

? Aquaculture

Specifications：

pH Sensor
Output	4-20 mA
pH Range	0-14 pH
Operational Temperature Range	0-70℃
Electrode Type	Silver/silver chloride, double junction, replaceable gel electrode
Transmitter Type	2-wire
Pressure Range	0-70 psi
Automatic Temperature Compensation	0-70℃
Isolation	600 VDC
Power Supply Voltage	8-40 VDC
Warm-up Time	2 seconds
Response time	95% < 5 seconds
Wetted Materials	316 Stainless Steel, Delrin?, Viton?, glass, epoxy
Length	14.25 in (36.20 cm)
Width	0.750 in (1.9 cm) maximum
Weight (No cable)	0.50 lbs (0.227 kg)
Linearity	±0.014 pH*
Accuracy	±0.014 pH*
Sensitivity	±0.01 pH
Stability	±0.03 pH per year
Temperature Sensor
Output	4-20 mA
Temperature Range	0-50℃
Accuracy	+/- 1℃
Linearity	+/- 0.5℃
Power Supply Voltage	7-40 VDC
Cable
Cable Material	Polyurethane
Type	4 conductor, Kevlar? reinforced, water blocked, shielded, twisted-pair wiring
Maximum Distance	3 miles
Resistance per 1000 ft (304.8 m)	26 Ohms
Replaceable?	Yes
