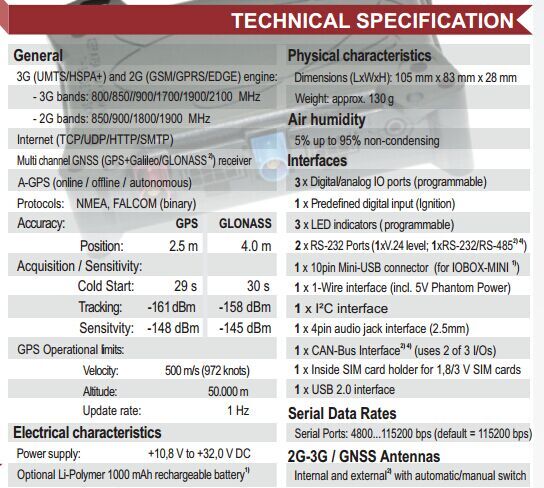

Product Specification

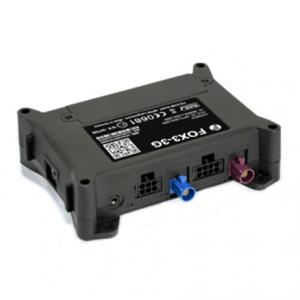

The new FALCOM FOX3-3G

the engineering of this AVL product is built on the same technology of the FOX3 device with additional UMTS/HSPA+ high-speed data connection.

FALCOM is using state-of-the-art technology to develop unique and low-cost devices for identifying, tracking and managing assets more effectively than current systems on the market today. FOX3-3G is a compact all-in-one device combining 2G/UMTS/HSPA+ high-speed data connection with the latest GNSS technology to completely satisfy customer’s need. Depending on the requirements of the respective customer, the needed hardware options can be decided shortly before installation. Based on the design features and extended capabilities, this device will dramatically simplify customer logistics as well as the installation process and post-inbstallation support. It provides analog ports and integrates with 1-Wire interface. The 1-Wire interface supports connection with multiple sensors and actuators such as iButton, Temperature Logger, Temperature Sensor, Humidity sensor… etc.

It can act a mobile client for various regular applications like AVL, fleet management, security and recovery of assets. The device offers new features like: DATA ENCRYPTION, several HISTORY MODES or ECO- DRIVE beside standard items like status reports, alerts messaging, audio call, spy calls or geofencing.

FOX3-3G available accessories:
? 1000 mAh rechargeable back-up battery
? IOBOX-MINI (with additional 13 I/Os)
? IOBOX-CAN(with aditional CAN-Bus interface and 8 I/Os)
? GLONASS (built-in receiver)
? JAZZ2 (provides a 2-way communication between driver and dispatcher)
? RFID-A-B-EXT (asset & driver identification)
? CA27 (programming cable)
? CA31 (8/8pin installation cable with interface to RFID / JAZZ2)
? CA68 (8/8pin installation cable with open ends)
? CA70 (8/3pin basic installation cable with open ends)
? CA69 (6/6pin accessory cable with interface to RFID / JAZZ2)
? CA71 (6/6pin accessory cable with open ends)

FOX3-3G PREMIUM-FEATURES
? RS-485 INTERFACE (hardware based)
? CAN INTERFACE (hardware based)
? ECO DRIVE GPS (firmware based)
? AES128 (firmware based)
? INDEXED HISTORY (firmware based)
? EXTENDED GEOFENCES (firmware based)
? EXTENDED ALARMS (firmware based)
