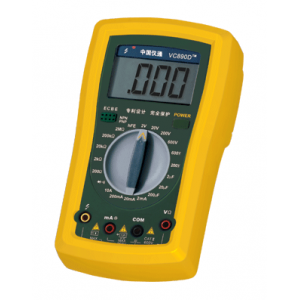

TM Full Protection Live Wire Verification Multi Function Multimeter - VC890D
? 3 1/2 digit display
? 2000 count resolution
? Self-recovery electronic protected circuit, no physical fuse required
? 2mA~200mA/10A DC current measurements
? Resistance, continuity and diode measurements
? Capacitance measurement, up to 200μF
? hFE measurement
- Model Number: VC890D
- Quantity:
- - +
Product Specification
VC890D Multi Function Multimeter General Feature
? 3 1/2 digit display
? 2000 count resolution
? Self-recovery electronic protected circuit, no physical fuse required
? 2mA~200mA/10A DC current measurements
? Resistance, continuity and diode measurements
? Capacitance measurement, up to 200μF
? hFE measurement
VC890D Multi Function Multimeter Accessories
Test lead sets, Yellow shock-resistanceslipcover, user's manual.
VC890D Multi Function Multimeter Measurement Range and Accuracy
|
Function |
Range |
Resolution |
Accuracy |
|
DC Voltage |
2V~600V |
1mV |
±(1.0%+3d) |
|
AC Voltage |
200V/600V |
0.1mV |
±(1.0%+3d) |
|
DC Current |
2mA~200mA/10A |
10nA/10mA |
±(2.0%+5d) |
|
Resistance |
200Ω~2MΩ |
100mΩ |
±(1.0%+3d) |
|
Capacitance |
2μF~200μF |
1nF |
±(1.0%+3d) |
|
Diode/Continuity |
Yes |
hFE |
Yes |
