Toroidal Conductivity Sensor - SE 670

- Digital data transfer
- Cable length up to 100 m
- Competitively priced
- Compact design
- No process-wetted electrodes
- Large measuring range
- Quick-reacting temperature detector
- Insensitive to deposits and contaminations

Model Number: SE 670
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

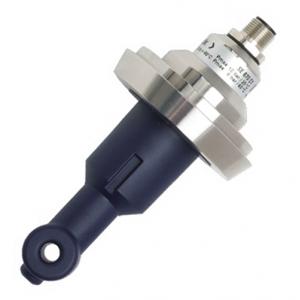

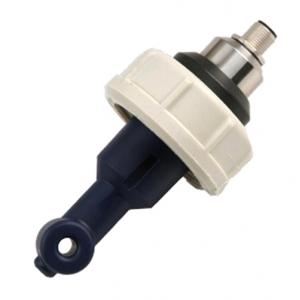

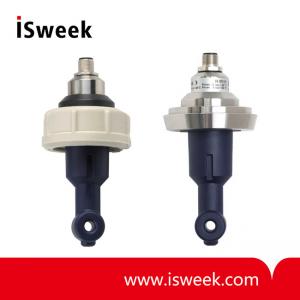

SE 670 Toroidal Conductivity Sensor

Competitively priced digital sensor for measuring low to very high conductivity values, insensitive to contamination and corrosion

Universal conductivity sensor with large measuring range for moderate chemical stress. With integrated, extremely fast temperature detector.

SE 670 Toroidal Conductivity Sensor Facts

SE 670 Toroidal Conductivity Sensor Applications

Fresh water and wastewater treatment, electroplating, photographic processes, air conditions, cooling tower monitoring, in-company wastewater treatment plants, monitoring of salts, alkaline solutions, and conductivity, tanneries, caustic treatment, washers, automotive engineering, rinsing processes

SE 670 Toroidal Conductivity Sensor Specifications

Cell factor*)	Approx. 6.4/cm
Measuring range	0.02 to 2000 mS/cm
Accuracy	≤ 1 %
Material	PP (polypropylene)
Temperature detector	Pt 1000
Temperature response time	Quick, using extrapolation with neuronal process
Temperature	0 … 60 °C (momentarily 100 °C)
Pressure	Max. 10 bar at 20 °C, max. 6 bar at 60 °C
Process adaptations	Coupling nut, G 1 1/2“ Dairy pipe screw joint, DN 50 Replacement sensor for installation in ARF 210/215 or ARD 220
Sensor cap	M12
