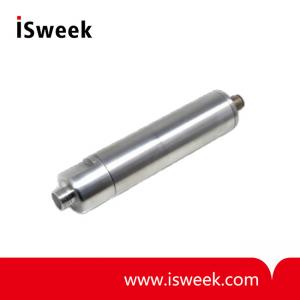

Universal Gas Transmitter (UGT) Probe - UGT

? Seal rating: IP65
? Supply voltage: 24V DC ±10%
? Current consumption: 250mA maximum
? Current consumption?: 250mA maximum
? Compact, lightweight design
? Robust stainless steel enclosure

Model Number: UGT
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GasTrack

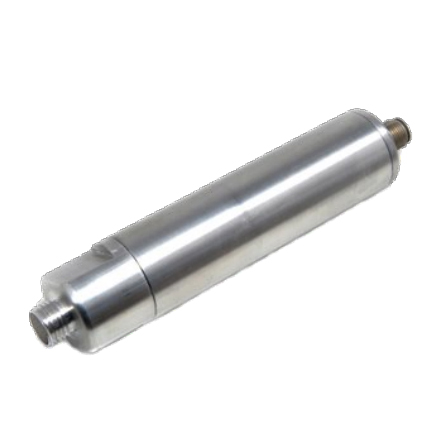

Universal Gas Transmitter (UGT) Probe

Universal Gas Transmitter (UGT) Probes a robust single gas monitor. With its tough stainless steel housing, it is an ideal solution for measuring process gases.

Universal Gas Transmitter (UGT) Probe FEATURES
? The UGT probe provides customers with a single gas monitoring solution
? Compact, lightweight design
? Robust stainless steel enclosure
? With its modular design, the probe is fully configurable at time of ordering; select the sensor, output and connector requirements to suit your needs

Universal Gas Transmitter (UGT) Probe APPLICATIONS
Designed for monitoring gas concentration in pipes and enclosed spaces

Universal Gas Transmitter (UGT) Probe TECHNICAL SPECIFICATIONS

Construction		Stainless steel enclosure
Seal rating		IP65
Supply voltage		24V DC ±10%
Current consumption		250mA maximum
Options:
Sensor	–one	O2 or CO2
Analogue output	–one	4 - 20mA; load 500Ω max. or 0 - 10V DC ; load 10kΩ max.
Digital output	–one	RS232 or RS485 (Modbus RTU)
Relay output		SPST normally open
Cable port		8-pin connector x M12
Connector thread		5/8"–18 UNF

Universal Gas Transmitter (UGT) Probe SENSOR OPTIONS

LuminOx O2 sensor:
Measurement range	0 - 25%
Accuracy	1% vol. O2
Resolution	0.01% vol. O2
NDIR CO2 sensor:
Measurement range	0 - 5,000ppm, 0 - 10,000ppm
Accuracy	±70ppm, ±5% of reading
Resolution	1ppm
