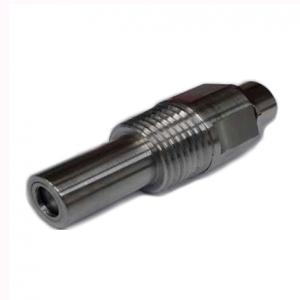

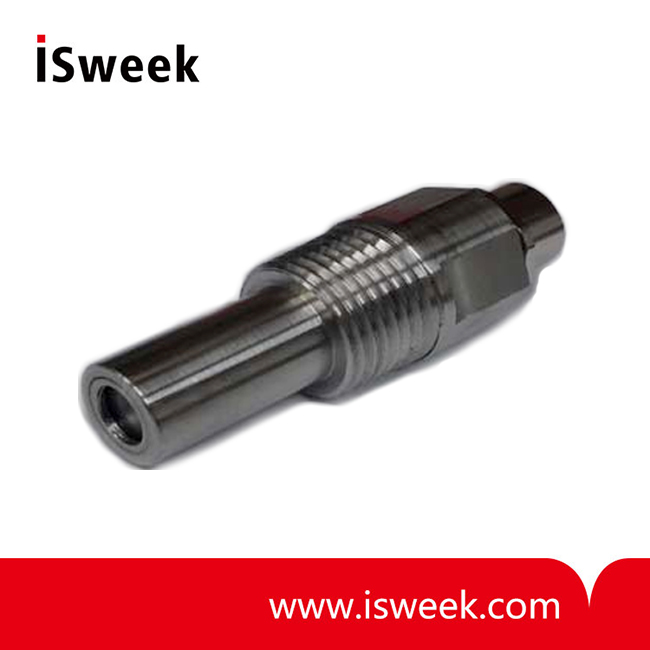

UV-C Sensor Probe - GUVC-T11GC-I4LW8.1
- AlGaInN-based UV Sensor
- Single Supply Voltage
- 3 wire 4-20mA Current Output
- Water Environment (10 bar)
- Spectral Detection Range: 220~280nm
- Power Supply: DC 9~24 V
- Offset Current: 4mA
- Output current: DC 4 ~ 20 mA
- Detection Power Range: 0~100 ?/?
- Model Number: GUVC-T11GC-I4LW8.1
- Data Sheet:
- Quantity:
- - +
Product Specification
GUVC-T11GC-I4LW8.1 UV Sensor Probe Feature
- Single Supply Voltage, 3 wire 4-20 mA Current Output
- Water Environment (10 bar)
GUVC-T11GC-I4LW8.1 UV Sensor Probe Application
- Sterilization Lamp Monitoring
- Pure UV-C Monitoring
GUVC-T11GC-I4LW8.1 UV Sensor Probe Case dimensions
|
Thread/Length for Mounting |
Diameter (mm) |
Window (mm) |
Wrench (mm) |
Length (mm) |
Weight (g) |
Body (stainless steel) |
| NPT1/2" /12 mm | 14 |
10 |
20 | 67 |
72 |
316-L ( 1.4404 ) |
GUVC-T11GC-I4LW8.1 UV Sensor Probe Absolute Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. | ||||
|
Storage Temperature |
Tst |
-40 |
|
90 |
°C |
|
|
Operating Temperature |
Top |
-30 |
|
85 |
°C |
|
GUVC-T11GC-I4LW8.1 UV Sensor Probe Electro-Optical Characteristics (at 25°C)
|
Parameter |
Symbol |
Value |
Unit |
Remark | ||
|
Min. |
Typ. |
Max. |
||||
|
Supply Voltage |
Vcc |
9 |
|
24 | VDC |
|
|
Offset Current |
Ioff |
|
4 |
|
mA |
|
|
Spectral Detection Range |
λ |
220 |
|
280 | nm |
10% of Max |
|
Output Current |
Iout |
4 |
|
20 | mA |
|
|
Detection Power Range |
P | 0 |
|
100 | mW/cm2 |
Vcc = 24 V |
|
Response Time |
T |
|
10 |
|
ms |
|
* Maximum of detection power : 20mW/cm2 (Option), 100mW/cm2 (Standard), 1000 mW/cm2 (Option)
