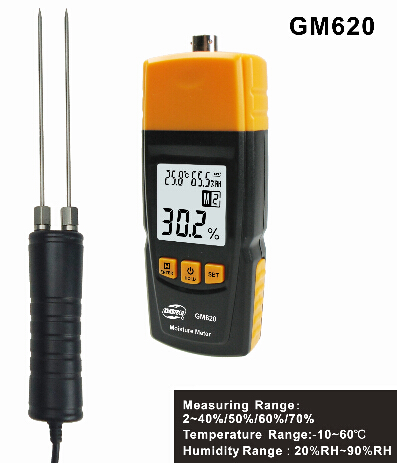

Wood Moisture Meter - GM620

? Measuring Range: 2~40%/50%/60%/70%
? Resolution: 0.5%
? Temperature Range: -10~60℃
? Humidity Range: 20%RH~90%RH
? Moisture Response Speed: <1s
? Measuring Error: ±1%
? Display: LCD
? Power: 2*1.5V AAA Battery

Model Number: GM620
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GM620 Wood Moisture Meter Description
This precision instrument applies the most advanced core technology in MCU application field, which features accurate output, convenient operation and 4-level adjustment, can be applied in measuring the moisture level in the woods, bamboo, paper and some Chinese medical plants.

GM620 Wood Moisture Meter Features
? Adjustable for 4 tree species.
? Reading lockable.
? Auto temperature compensation for environment varying.
? Maximum moisture reading review.
? Backlight on/off switch.
? Applying CPU technology for accurate measuring.
? 2 pcs of AAA battery for power supply with battery icon for indication of power.
? Large LCD.
? Automatic turn-off if there is no further operation within 120 seconds while manual turn-off can be performed.
? Able to measure the environmental humidity and temperature.
? Compact and fine design with solid and light plastic material, Portable and easy operation.

GM620 Wood Moisture Meter Technical index

	Range	Max error	Resolution
Moisture	Spc1: 2 ~ 40% Spc2: 2 ~ 50% Spc3: 2 ~ 60% Spc4: 2 ~ 70%	± 1%+0.5	0.5 %
Temperature	-10℃~60℃	±1℃	0.1℃
Humidity	20%RH~95%RH	±5.0%RH	0.1%RH
Operating environment	Temperature: 0℃~40℃; Humidity: 20%RH~95%RH

	Built-in	Detachable
Weight	107.7g	115.8g (Meter only ), 133.3g (Meter with fork)
Excluding battery
Size	135.65529.4mm	1445529.4mm (Meter only ), 2783636mm (Meter with fork)
Fork	9.8mm	147mm
