Product Specification

BX171 with ATEX

Brief Introduction:

News: BX171 Portable gas detectors with ATEX cetification now!

No.: Nemko 12ATEX 1040

Up to one year of continuous maintenance-free protection!

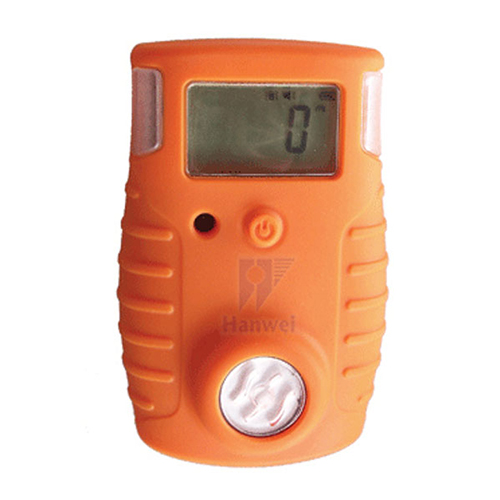

As a zero-maintenance gas detector, BX171 offers continuous, reliable protection. Available in one year version, this single gas detector requires no calibration, sensor replacement, battery replacement, or battery charging.

Specifications:

- Smart design and comfortable feel

- Durable, reliable and easy to use

- Exceptionally low cost of ownership

- Bright wide-angled visual alarm bars and high decibel audio alarm

- IP66 design

- STEL and TWA Alert

- Adopting CR123 battery which can work for 6000 hours

- Simple automatic calibration function

- Confidence-beat which shows the detector status

- Detection method: Natural diffusion
- Sensor type: Electrochemical
- Indication error: <= +/-5% F.S.
- Working condition: Temperature: -20^oC-55^oC Humidity: <95%RH
- Power source: DC3V CR123A Lithium battery
- Sensor life: 2 years
- Protection grade: IP66
- Explosion-proof grade: ExibIICT4
- Dimension: l X b X h, mm: 91 X 58 X 34
- Weight: about 132g

Detecting gas:
