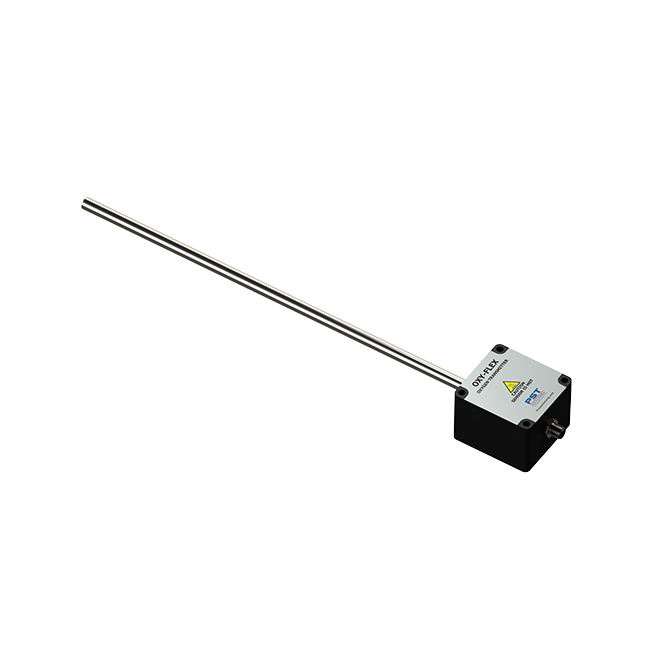

Zirconia Oxygen Transmitter - OXY-FLEX Series
Configurable outputs: 4-20 mA and 0...10 V DC or RS232 comms interface
- Model Number: OXY-FLEX Series
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom

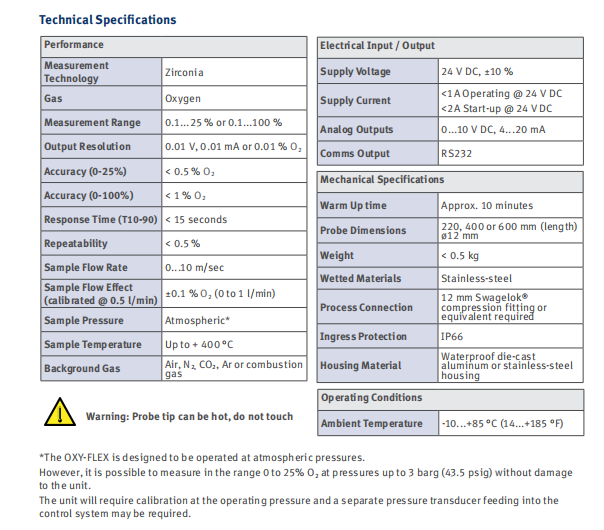

Product Specification

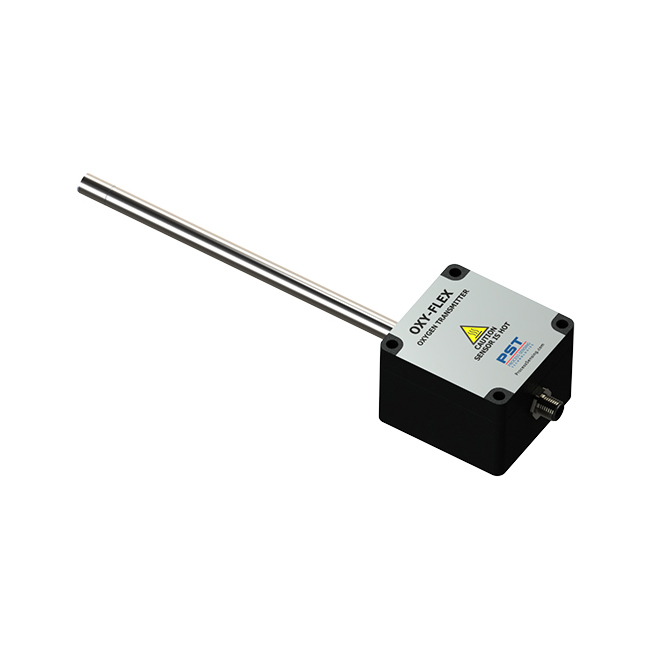

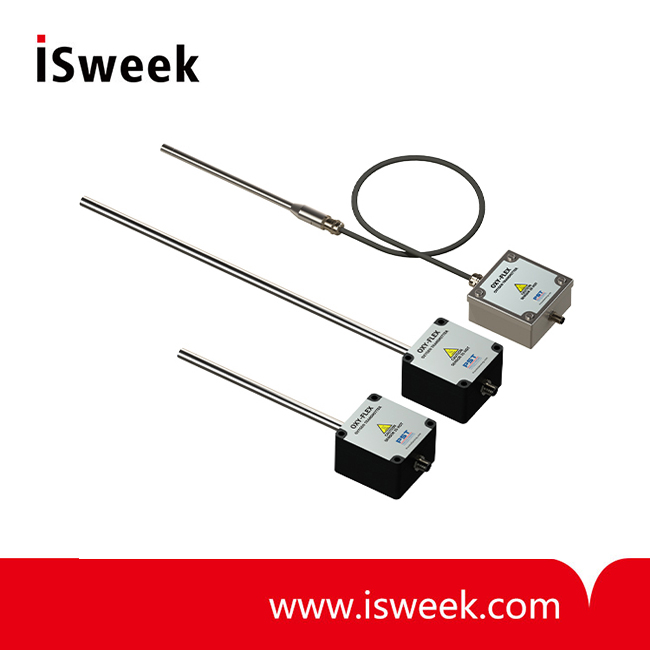

Zirconia Oxygen Transmitter OXY-FLEX Series Description:
PST offers a compact and cost-effective zirconia transmitter to measure percentage level oxygen in combustion processes, excess air monitoring, bakery ovens, and many more applications.
The unit is configurable to measure either 0.1...25 % or 0.1...100 % oxygen and offers manual or automatic calibration to suit the customer’s needs.

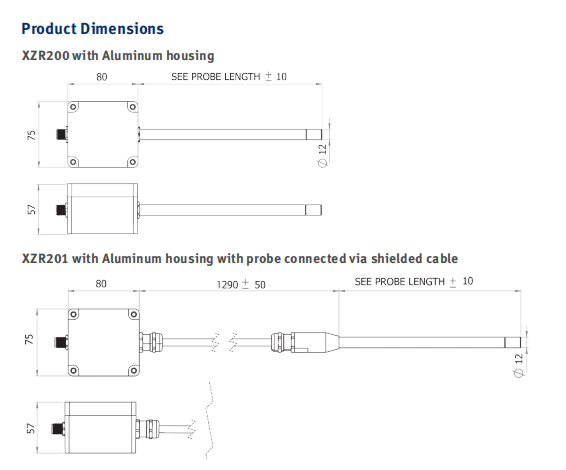

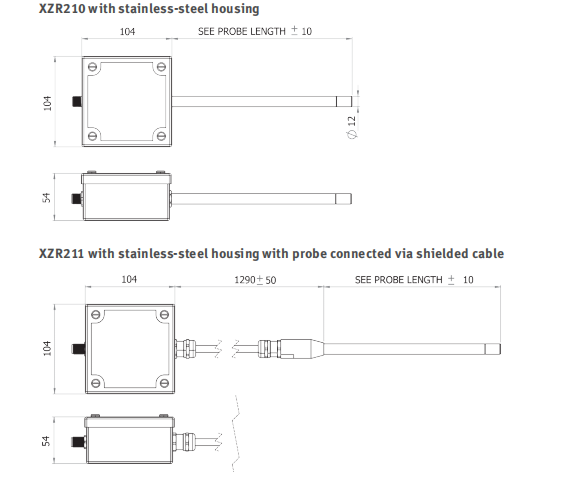

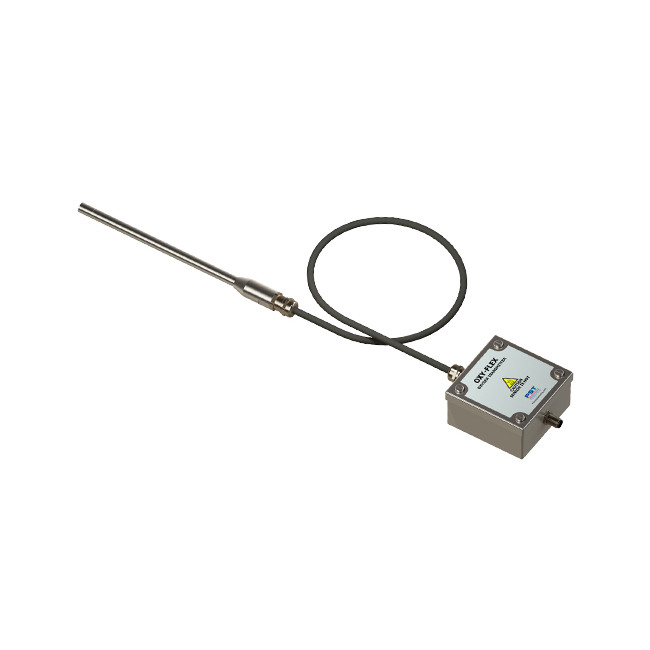

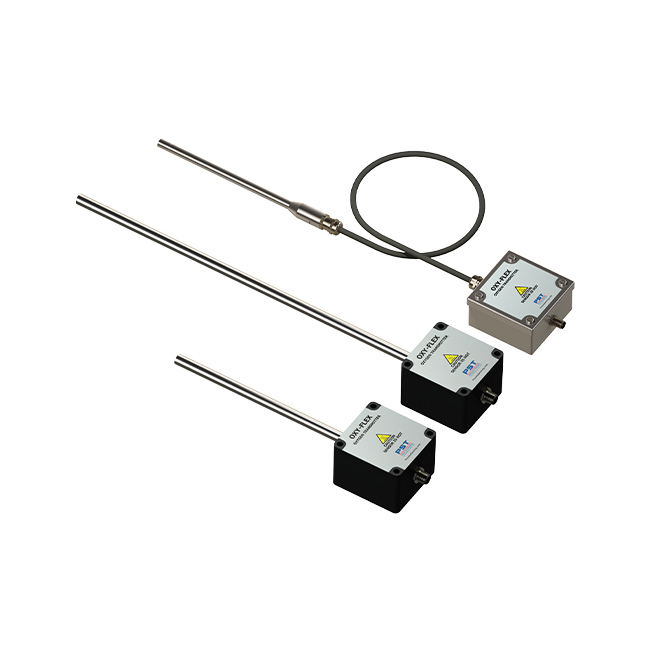

The probe can be mounted directly on the housing unit or a shielded cable. The OXY-FLEX is easy to install and integrate into existing systems as no specialist software is required.
Zirconia Oxygen Transmitter OXY-FLEX Series Highlights：
? Configurable outputs: 4-20 mA and 0...10 V DC or RS232 comms interface
? Cycling 3.3 V DC logic output allows direct monitoring of the O2 sensor for diagnostic purposes
? Can be calibrated in normal air, 20.7 % O2, or in any other known O2 concentration
? Selectable output filtering allows fast and dynamic or slow and stable output
? Externally triggered automatic or manual calibration
? Sample temperature from -100 °C / -148 °F to+400 °C / 750 °F
? IP66 certified enclosure in either aluminum or stainless-steel
? Certified CE, UKCA, ISO9001
Zirconia Oxygen Transmitter OXY-FLEX Series Applications：
? Compressed air class 1 to Class 6 dryers
? Breathing air
? Inert and bulk gases
? Welding gases
? Combustion optomization
? Pharmaceutical oxygen control
? Oil, gas and biomass boilers
? Composting
? Commercial baking ovens
? Oxygen generation
