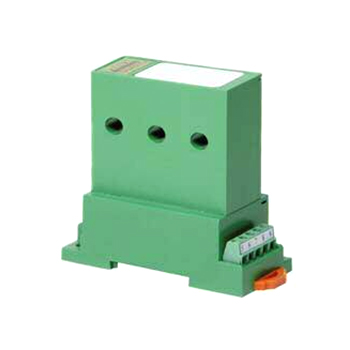

3 Phase, 4 Wire AC Active Power Transducer - CR6250

Product Specification

CR6250 Power Transducers and Transmitters are designed to provide a controlled output that is proportional to the average power. These devices are specifically targeted to provide an efficient solution to most power sensing needs. Units are designed for operation in systems with sinusoidal voltage and current waveforms.

CR6250 AC Active Power Transducer Features
? Ranges available for any power sensing need
? Connection diagram printed on case
? Active and Reactive power sensing
? DIN Rail or Panel Mount
? 0 - 5 VDC output

CR6250 AC Active Power Transducer Specifications
? MTBF: Greater than 100 K hours
? Frequency Range: 50Hz - 400 Hz
? Power Source: 12 to 24 VDC
? Output Load: 2K Ω or Greater
? Operating Temperature: 0°C to +60°C
? Thermal Drift: 500 PPM/°C
? Basic Accuracy: 0.5%
? Insulation Voltage: 2500 VDC
? Response Time: 250 ms

CR6250 AC Active Power Transducer Applications
? Energy Management
? Motor Efficiency
? Multi-point power sensing
? Remote power sensing over long distances

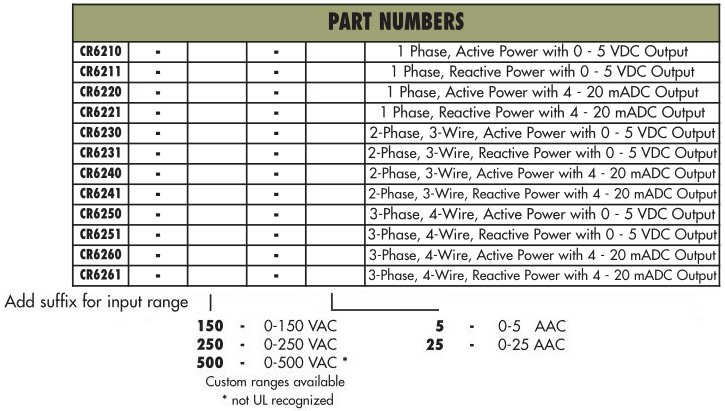

CR6250 AC Active Power Transducer PART NUMBERS
