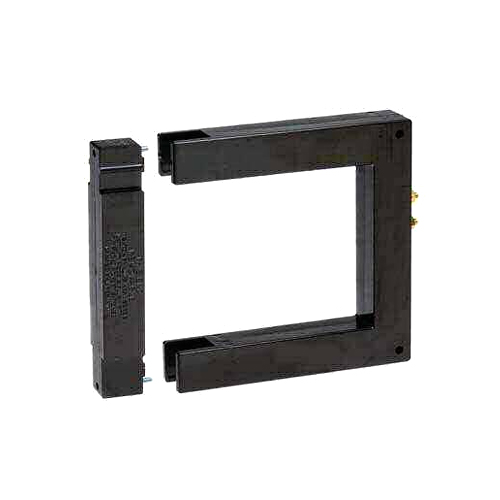

600 & 601 Series Split-core Current Transformer - 600 & 601 Series

Application: ANSI (Revenue Grade)
Split Core: true
Mount: wire
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor: 1.33 at 30° C amb 1.00 at 55° C amb
Approximate Weight: 1.5 lbs.

  • Model Number: 600 & 601 Series
  • Data Sheet: Date Sheet File
Quantity:
- +
  • 600 & 601 Series Split-core Current Transformer
Mouse over image to zoom
Share:

Product Specification

The 600 & 601 Series Split Core Current Transformers are designed for assembly to an existing electrical installation without the need for dismantling the primary bus or cables.

600 & 601 Series Split-core Current Transformer Caution
Proper safety precautions must be followed during installation by a trained electrician. Never install while bus is energized. The current transformer must have its secondary terminals short circuited or the burden connected, before energizing the primary circuit.

600 & 601 Series Split-core Current Transformer Features
Construction: The core and windings are encased in UL approved plastic
Terminals: 8-32 brass studs with one flatwasher and two regular nuts
Flexible Leads: UL 1015 105° C, CSA approved, #16 AWG, 24” long unless otherwise specified

600 & 601 Series Split-core Current Transformer Specifications
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor: 1.33 at 30° C amb 1.00 at 55° C amb
Approximate Weight: 1.5 lbs.

600 & 601 Series Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation

600 & 601 Series Split-core Current Transformer PART NUMBERS

Part Number
Current Ratio
VA at 1% Class
ANSI Metering Class at 60Hz
     Part Number
 Current Ratio
VA at 1% Class
ANSI Metering Class at 60Hz
BO.1
BO.2
BO.5

BO.1
BO.2
BO.5
600-401
400:5A
1.5
2.4

------
601-401
400:5A
1.0
4.8
------ ------
600-501
500:5A
2.0 2.4

------
601-501
500:5A
1.5
4.8 4.8
------
600-601
600:5A
2.5 2.4 2.4
------
601-601
600:5A
2.0
2.4 4.8
------
600-801
800:5A
5.0 1.2 1.2 2.4

601-801
800:5A
2.5
1.2
2.4
4.8
600-102
1000:5A
7.5 1.2 1.2
2.4

601-102
1000:5A
5.0 1.2
1.2
4.8
600-122
1200:5A
15.0 0.6
1.2
1.2

601-122
1200:5A
10.0 1.2
1.2
2.4
600-152
1500:5A
20.0 0.6
0.6 1.2

601-152
1500:5A
15.0 1.2
1.2
1.2
600-162
1600:5A
20.0 0.6
0.6
1.2

601-162
1600:5A
15.0 1.2 1.2
1.2
600-202
2000:5A
30.0 0.6
0.6
0.6

601-202
2000:5A
20.0 0.6 0.6
1.2
