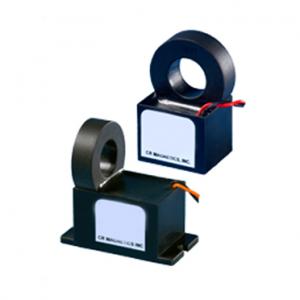

61" Diameter Window Current Sensor - CR9550

Product Specification

The CR9550 Series Current Sensors provides a cost effective method for monitoring electrical current. The sensor generates a 0-5 VDC signal proportional to the input AC current. The output signal is average sensing, calibrated to RMS. The sensor is used with process control and industrial instrumentation equipment. Especially suited for OEM applications that require a low cost solution for numerous monitoring locations.

The DC output can be connected directly to an analog input connection without additional signal conditioning. Care must be taken to ensure the burden impedance of the instrumentation is greater than 1.0 megohm. The unit will operate with lower bur- den impedance but at reduced accuracy.?

CR9550?Current Sensor Features
? Low Cost
? Low Fixed Trip Point
? Fully Isolated, Reverse Polarity Protected
? Self-Powered
? Available in Mountable Package
? Output Overload Protected

CR9550?Current Sensor?Specifications
? Accuracy: ± .5% Full Scale (FS)
? Ripple: 1% Max
? Signal Out: 0-5 VDC
? Max. Signal Out: 12 VDC
? Frequency * : 50 to 400 Hz
? Insulation Class: 600 V
? Operating Temperature: -30 C to + 60 C
? Storage Temperature: -55 C to + 85 C
? Shipping Weight: 2 oz. (.06 Kg.)
? Dielectric Withstand: 2,500 Vrms
? Response Time: 250 ms. max. 10-90% FS
? Calibration: Avg. Sensing, RMS Calibrated
? Output Load: 1.0 Megohm or greater for rated accuracy
? * All specifications for operation at 60 Hz

CR9550?Current Sensor?Applications
? OEM Current Sensing
? Home Automation
? Monitor Motor Operation

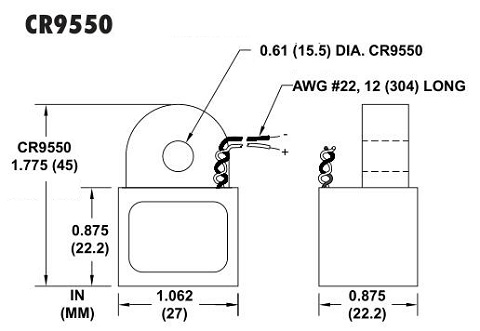

CR9550?Current Sensor?OUTLINE DRAWING

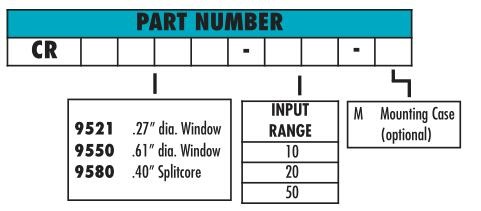

CR9550?Current Sensor?PART NUMBER
