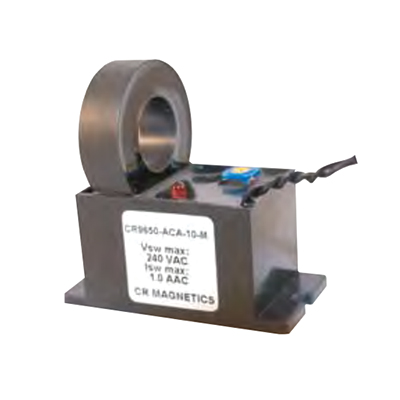

Adjustable Current Switch Normally Open - CR9650

Product Specification

The CR9650 Series is a low cost, self powered, adjustable set-point Current Switch designed for applications that require an on-off indication of current flow. Current levels above the setpoint will turn the output to full on. The Current Switch is recommended only for applications where the continuous operating current is above the rated full on level of 1.0 Amps. Operation below this point will not drive the output device full-on and derate the output ratings. The unit is available with a NPN or PNP output transistor for switching DC and ACA output for AC switching. Connections can be made directly to items such as a PLC or electromechanical relay. Note that connections made directly to an inductive device such as an electromechanical relay will require a customer supplied clamping diode for DC operation or a snubber network for AC operation.

CR9650 Adjustable Current Switch Normally Open Features
? Economically Priced
? Adjustable Trip Point
? Reverse output polarity protected
? Self-powered
? Panel mounting case (optional)

CR9650 Adjustable Current Switch Normally Open Specifications
? Rated full-on: 0.350 Aac RMS
? Turn-on time: 100 ms max. @ rated full-on
? Turn-off time: 250 ms max. to 80% of Vce
? Maximum sense current:
  Continuous: 100 AAC
  1 Second: 500 AAC
? Frequency: 50 to 400 Hz
? Operating Temperature: -30°C to +60°C
? Storage Temperature: -55°C to +85°C

CR9650 Adjustable Current Switch Normally Open Applications
? Continuity
? Proving Switch
