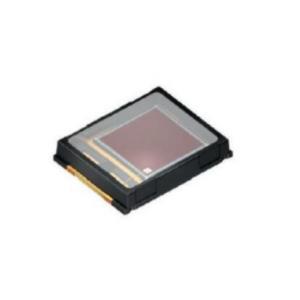

Ambient light sensor IC - ALS-AK610P-DF
● PCinterface (Fast Speed Mode at 400kHz/s)
● Dedicated Interrupt Pin
● Supply Voltage Range from 1.7V to 3.6V
● Operating Temperature Range from-40°C to+85°C
● Ambient Light Photo Sensor
- Model Number: ALS-AK610P-DF
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
The ALS-AK610 provides ambient light sensing (ALS) detection. The ALS approximates human eye response to light intensity under a difference of lighting conditions and through a difference of attenuation materials.ALS-AK610 can detect the wide rangeillumination from the dark up to under direct sun light. I also support program hardware interrupt with interupt with hysteresis to respond to events.
Features：
● PCinterface (Fast Speed Mode at 400kHz/s)
● Dedicated Interrupt Pin
● Supply Voltage Range from 1.7V to 3.6V
● Operating Temperature Range from-40°C to+85°C
● Ambient Light Photo Sensor
● Close to human eyes responsibility
● Up to 16-bit Digial Output (0~65535)
● Programmable Dynamic Range Ratio=1:4:16:64:256
● Lincar Output Code for Dynamic Range Selection
● Eliminate 50/60 Hz Filter by Programmable Integrated Time
● Fluorescent light flicker immunity
● Package level trimming by software.
Application：
● Cell Phone and LCDdisplay backlight control
● Notebook/Monitor Securiy
● Automatic Menu Pop
● Digital Camera light meter
