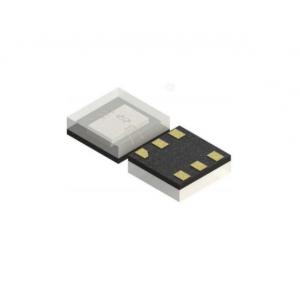

Ambient light sensor IC - WH3620
? I2C interface (Fast Speed Mode at 400kHz/s)
? Supply voltage range from 2.4V to 3.6V
? Operating temperature from -40°C to +85°C
? Package level trimming.
? Power on reset & brown out reset.
- Model Number: WH3620
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
WH3620 is a color-based light to digital converter which combines photodiodes, current amplifiers, analog circuit and digital signal processor.
WH3620 provides red, green, blue, white and infrared light sensing. Each channel is parallel output at the same time, so it has excellent performance of illuminance & correlated color temperature under different light conditions such as white LED, CWF, TL84, D65, illuminant A and horizon. It can work from dark to direct sunlight, the selectable detect range is about 70dB.
WH3620 has programmable interrupt function with high / low threshold.
Features：
? I2C interface (Fast Speed Mode at 400kHz/s)
? Supply voltage range from 2.4V to 3.6V
? Operating temperature from -40°C to +85°C
? Package level trimming.
? Power on reset & brown out reset.
? Waiting time function for reducing power consumption.
? R, G, B, W and IR five channel parallel output.
? Fluorescent light flicker immunity.
? Selectable analog gain.
? Selectable resolution (up to 16-bit).
? High sensitivity in low illumination.
? Wide detect range in high illumination.
? High accuracy of LUX & CCT.
Applications：
?Handset device
?Mobile phone, tablet, color matcher
?Consumer device
?LCD TV, digital camera, toy
?Computing device
?Laptop, LCD monitor
?Smart lighting
?Ceiling light, panel light
