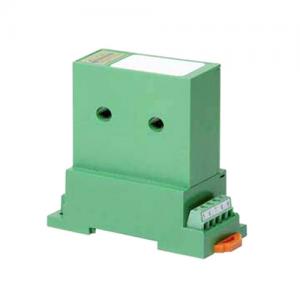

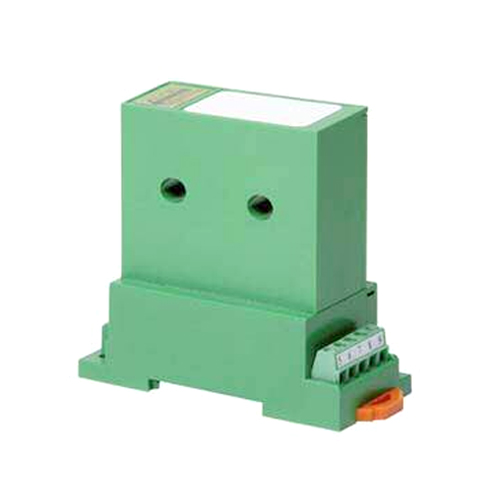

Average RMS AC Current Transducer - Two Element - CR4450

Product Specification

The CR4450 Two Element Series Average RMS Current Transducers and Transmitters are designed to provide a calibrated DC output proportional to the AC current input. Designed for multi-point current sensing, these devices provide excellent features in a high value package. Average RMS is recommended when sensing current waveforms that have a fixed frequency, and are usually for loads operated from standard utility power.

CR4450 Average RMS AC Current Transducer Features
? Analog 0 - 5 VDC output
? 24 VDC powered
? Use with external C/T’s
? Highest precision available
? Connection diagram printed on case
? DIN Rail or Panel Mount

CR4450 Average RMS AC Current Transducer Specifications
? Frequency Range: 20 - 4 KHz
? Basic Accuracy: 0.5%
? 0-5 VDC : 2K ohm or Greater
? Output Load: Power Source: 24 VDC
? Insulation Voltage: 2500 VDC
? Response Time: 250 ms
? MTBF: Greater than 100 K hours
? Operating Temperature: 0°C to +50°C
? Thermal Drift: 500 PPM/°C
? Calibration: Average RMS Sensing
? 4-20 mA DC: 0 - 300 ohm

CR4450 Average RMS AC Current Transducer Applications
? Quickly varying motor loads
? Chopped wave form drivers
? Harmonic currents
? Phase fired controlled heaters

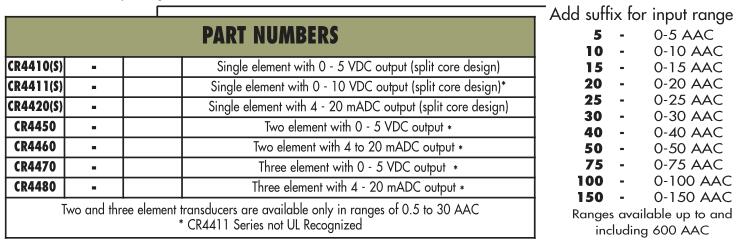

CR4450 Average RMS AC Current Transducer PART NUMBERS
