Average RMS AC Voltage Transducer - Three Phase Three Wire (Delta) - CR4850

? Voltage Type: AC Voltage
? Frequency: AC Frequency
? RMS: Average RMS
? Elements: Three Element 3-Wire
? Outputs: 0-5 VDC
? Power: 24 Vdc Power
? Mount: DIN Rail Mount, Panel Mount

  • Model Number: CR4850
  • Data Sheet: Date Sheet File
Quantity:
- +

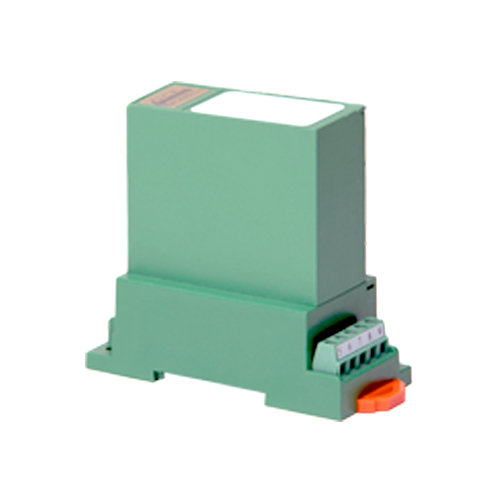

  • Average RMS AC Voltage Transducer - Three Phase Three Wire (Delta)
Mouse over image to zoom
Share:

Product Specification

CR4850 Average RMS Voltage Transducers and Transmitters are designed to provide a DC output proportional to the AC voltage input. These devices are best suited for general applications, such as fixed frequency voltage supplies.

CR4850 Average RMS AC Voltage Transducer Features
? 35mm DIN rail mount or panel mount
? 24 Vdc powered
? Outputs isolated from inputs
? Connection diagram printed on case

CR4850 Average RMS AC Voltage Transducer Specifications
? Basic Accuracy: 0.5%
? Calibration: Average RMS sensing
? Thermal Drift: 500 PPM/°C
? Operating Temperature: 0°C to +60°C
? Installation Catagory: CAT II
? Polution Degree: 2
? Response Time: 250 ms
? Altitude: 2000 meter max.
? Insulation Voltage: 2500 Vdc
? Supply Voltage: 24 Vdc ±10%
? Frequency Range: 20 Hz - 5 KHz
? Cleaning: Water-dampened cloth
? MTBF: Greater than 100 K hours
? Output Load: 0-5 Vdc - 2 K Ω or Greater
? Relative Humidity: 80% for temperatures up to 31°C and decreasing linearly to 50% at 40°C

CR4850 Average RMS AC Voltage Transducer Applications
? Monitor Motor Faults
? Monitor Heating Elements
? Monitor Lighting Elements
? Remote Voltage Sensing

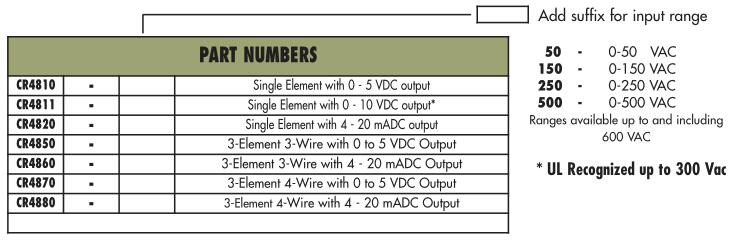

CR4850 Average RMS AC Voltage Transducer PART NUMBERS
