Product Specification

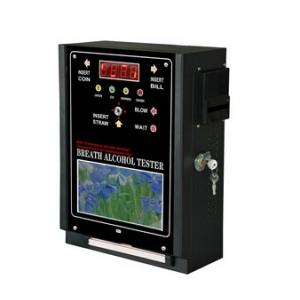

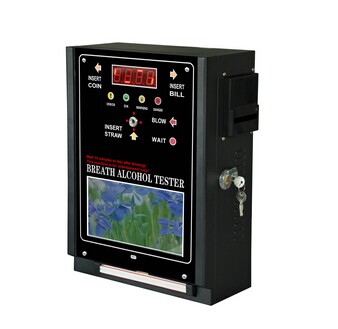

AT320 Bill and Coin operated Alcohol Tester

Feature

Suitable for bar, or restaurant, hotel, disco etc public places
Fuel cell sensor, sensor module replaceable
Operated by disposable straw
Straw box for 200pcs straws one time
Other language panel offered
Audio and Light warning method
Test result with 4 digits display
Large lighting block to indicate the operating procedure on the panel

Specifications

Sensor type: Fuel cell sensor

Test Range: 0.000~2.000mg/l
(0.400%B.A.C; 4.000%oB.A.C; 4.000g/l;)
Alarming level:
  Warning level: 0.090mg/L (could be modified)
  Danger level:  0.250mg/L (could be modified)

Accuracy: +/-0.005 at 0.05BAC%

Working environment:
  Temperature: 0'C~50'C  Humidity: <95%RH (No Dews)
Power: AC110-220V 50-60Hz
Calibration: no necessary, well pre-calibrated sensor module changeable
Dimension l X b X h: 250mm X 105mm X 400mm

Indication manner: mg/l,mg/100ml,g/l ,%BAC,%oBAC optional
Coin for single time: 0-15
Coin specification:
  Diameter: 20mm-28mm, thickness: 1.2mm-2.5mm

Coins Capacity: about 600 pieces;
Bill width: 62-72mm; Bill capacity: 600pcs
Straw capacity: 200pcs(?<=7mm)
Breath sampling time: about 5 seconds continuous breath

Certificate:CE
