Law Enforcement Alcohol Testers with Fuel Cell Sensor - AT8100

Product Specification

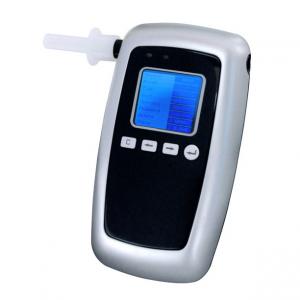

AT8100 Breath Alcohol Tester Summary
AT8100 is an advanced portable Breath Alcohol Tester. Its core component adopts new Electrochemical Sensor which can measure accurately concentration of the breath alcohol, with strong anti-interface ability. AT8100 has compact keyboard and menu operation. The admirable human-device interface makes operation more concise and convenient, the color LCD makes interface more clear and beautiful. It also has bluetooth printing function, one-off anti-return mouthpiece ensures the health and safety of users

AT8100 Breath Alcohol Tester Main functions and futures:
? Adopt advanced 16 bit low power consumption MCU
? Electrochemical sensor, good reliability and accuracy
? Color LCD indication
? Passive test function
? Wireless printing function
? Real time and temperature indication
? Two level audible and visible alarm indication
? Low battery automatic power off function
? Blowing interruption and testing rejection function
? Unit and alarming level adjustable
? History record checking
? 2000 memory records, including test time, result and types of result
? Testing data upload to PC function
? Password management, important operation requires verification of password
? Short warm-up time, fast response and resume
? Adopt anti-return mouthpiece for health and safe

AT8100 Breath Alcohol Tester Technical specifications:
? Sensor type: Electrochemical sensor
? Test Range: 0.000～2.000mg/l (0.40%B.A.C, 4.0‰B.A.C, 4.0g/l)
? Pass level: 0.090mg/L (could be modified)
? Fail level: 0.250 mg/L (could be modified)
? Work temperature: 0℃ ~ 50℃
? Work humidity: <95%RH （No Dews）
? Battery: 2 x AA NiMH batteries, rating capacity: 2.1AH
? Dimension l x b x h: 122 x 67 x 31mm
? Weight：about 120g (excluding battery)
? Accuracy:
  ＜0.400: ±0.032 mg/L
   0.400≤C＜1.000: ±8%
   ≥1.000: ±30%
