Cabinet Mounted Conductivity Analyzer - DDG-230/DDG-330/DDG-430
? Digital temperature compensation
? 4 ~ 20mA current output
? Electrodialysis, reverse osmosis
? Ion exchange water system
? Cooling water control systems
? General industrial water on-line monitoring and control
- Model Number: DDG-230/DDG-330/DDG-430
- Data Sheet:
- Quantity:
- - +
Product Specification
Cabinet Mounted Conductivity Analyzer
This product is measured as the affordable industrial line conductivity and control instruments, digital temperature compensation, 4 ~ 20mA current output, suitable for electrodialysis, reverse osmosis and ion exchange water system, cooling water control systems and general industrial water on-line monitoring and control.
DDG-230/DDG-330/DDG-430 Conductivity Analyzer Technical Parameters
|
Model |
DDG-230 |
DDG-330 |
DDG-430 |
|

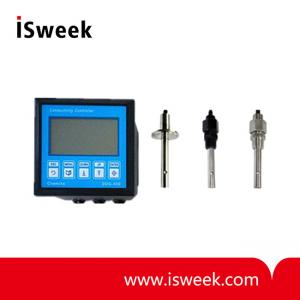

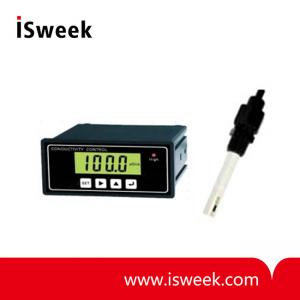

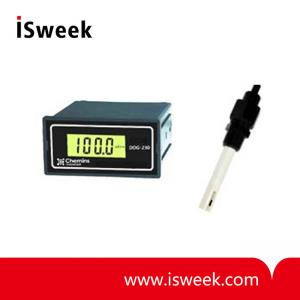

Product picture |
 |
 |
 |
|
Measuring
range |
0～20/200/2000uS/cm |
0～20/200/2000uS/cm;
0～20/200/2000ppm;
0～20mS/cm
|
0～20000uS/cm |
|
Accuracy |
±1.5%F.S |
±1.5%F.S |
±1.0%F.S. |
|
Current output |
Optically isolated 4 ~ 2
0mA |
Optically isolated 4 ~
20mA |
Optical isolation can migrate
4 ~ 20mA |
|
Control output |
/ |
Relay limit switch |
Programmable upper and
lower limits relay |
|
Power supply |
AC 110/220V±10% 50/60Hz |
AC 110/220V±10% 50/60Hz |
AC/220V±10% 50/60Hz |
