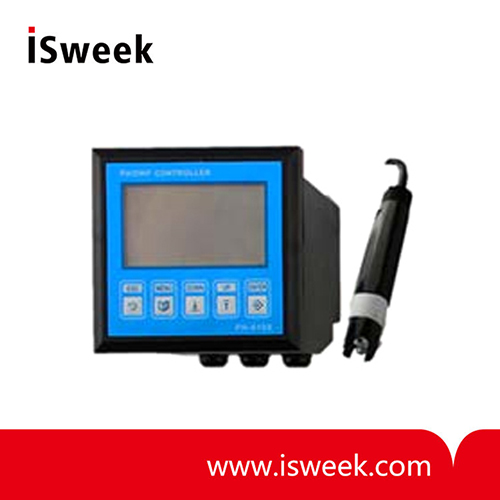

Cabinet mounted PH / ORP Analyzer - PH-160/PH-620
? PH measuring range: 0.00 ~ 14.00pH?
? ORP measuring range: -1000mV ~ +1000mV?
? ?Switch control?: High and low 2 points alarm?
? Output: 4~20mA/Rs485
? Digital temperature compensation
- Model Number: PH-160/PH-620
- Data Sheet:
- Quantity:
- - +
Product Specification
PH-160/PH-620 Cabinet Mounted PH / ORP Analyzer
This product is a cost-effective type of industrial Online pH / ORP measurement and control instruments, digital temperature compensation, 4 ~ 20mA current output, suitable for chemical, oil refining, paper, sugar, metallurgy, power generation, pharmaceutical and other industrial sectors and general on-line monitoring and control of industrial water.
PH-160/PH-620 Cabinet Mounted PH / ORP Analyzer Technical Parameters
|
Model |
PH-160 |
PH-620 |
|
Product picture |
 |
 |
|
PH measuring range |
0.00 ~ 14.00pH |
0.00 ~ 14.00pH |
|
ORP measuring range |
-1000mV ~ +1000mV |
-1000mV ~ +1000mV |
|
Working temperature |
pH: 0 ~ 60°C
ORP: 0 ~ 60°C
|
pH: 0 ~ 65°C/100°C
ORP: 0 ~ 65 °C
|
|
Switch control |
High and low 2 points alarm |
High and low 2 points alarm |
|
Output |
4 ~ 20mA/Rs485 |
4 ~ 20mA/Rs485 |
