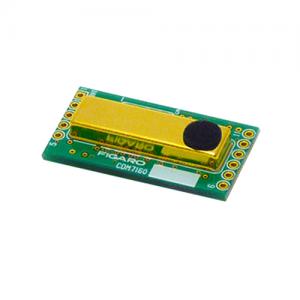

Carbon dioxide (CO2) sensor module - CDM7160
The CDM7160 CO2 module uses a compact NDIR CO2 sensor, featuring excellent performance characteristics, including high accuracy and low power consumption. Two detector elements inside the module make absolute measurement possible.
- Model Number: CDM7160
- Data Sheet:
- Quantity:
- - +
Product Specification
CDM7160 - Pre-calibrated CO2 Module
The CDM7160 CO2 module uses a compact NDIR CO2 sensor, featuring excellent performance characteristics, including high accuracy and low power consumption. Two detector elements inside the module make absolute measurement possible.
Every module is individually calibrated and is provided with both a UART and I2C digital interface. The CDM7160 module is designed for simple integration into a user's products. It can be used in a wide range of applications such as ventilation controls for the improvement of energy savings and to assure a good indoor climate.
Features
* Small size
* Low power
* High accuracy
* Absolute measurement via dual sensors
Application examples
* Indoor air quality control
* Fresh air ventilators
* Air conditioners
* Automatic fans and window openers

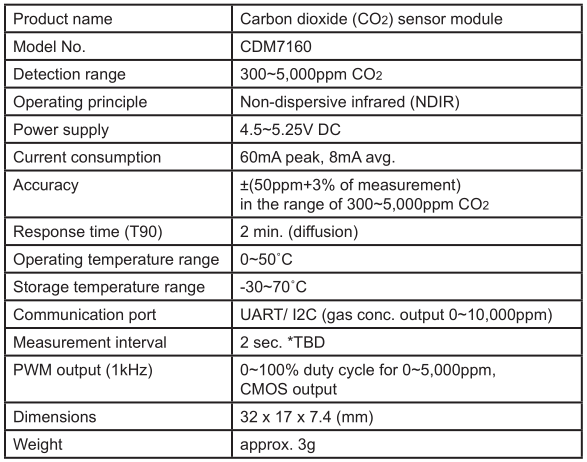

Specifications (tentative)
