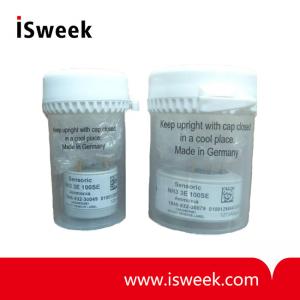

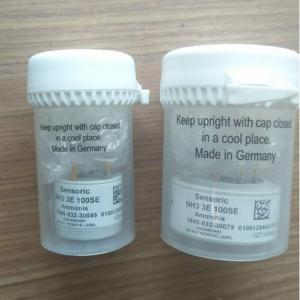

Ammonia Sensor (NH3 Sensor) - NH3-3E100SE
? Measuring Range: 0-100 ppm
? Sensitivity Range: 130 nA/ppm ± 30 nA/ppm
? Resolution at 20°C: < 1 ppm
? Linearity: < 10% full scale
? Operation Temperature Range: -20°C to +40°C
? Operation Humidity Range?: 15-90% r.H, non-condensing
- Quantity:
- - +
Product Specification
NH3-3E100SE Ammonia Sensor NH3 Sensor Description
NH3-3E100SE Ammonia Sensor, 3 Electrode sensor; available in Mini, Classic, 4-Series and 7-Series formats.
NH3-3E100SE Ammonia Sensor NH3 Sensor FEATURES
? Amperometric 3 electrode sensor cell
? Very stable zero reading
? Very selective
? Highly sensitive
? Hydrous electrolyte
NH3-3E100SE Ammonia Sensor NH3 Sensor TYPICAL APPLICATIONS
? TLV-monitoring, leakage detection
? portable & fixed point applications
? Food & Refrigeration Industry, General Industry, Semiconductor Industry
NH3-3E100SE Ammonia Sensor NH3 Sensor PART NUMBER INFORMATION
Mini
1845-932-30009
Sensoric Classic
1845-932-30069
CTL 4 series adaptation
1845-932-30049
CTL 7 series adaptation
1845-932-30079
NH3-3E100SE Ammonia Sensor NH3 Sensor TECHNICAL SPECIFICATIONS
Measuring Range
0-100 ppm
Sensitivity Range
130 nA/ppm ± 30 nA/ppm
Zero Current at 20°C
< ± 100 nA
Resolution at 20°C
< 1 ppm
Bias Potential
0 mV
Linearity
< 10% full scale
Response Time at 20°C
t50
t90
< 20 s calculated from 5 min. exposure time
< 60 s calculated from 5 min. exposure time
Long Term Sensitivity Drift
< 5% per 6 months
Operation Conditions
Temperature Range
Humidity Range
-20°C to +40°C
15-90% r.H, non-condensing
Effect of Humidity
Sensor Life Expectancy
Warranty
> 24 months in air*
12 months
* Background concentrations of ammonia might shorten life time of sensor.
