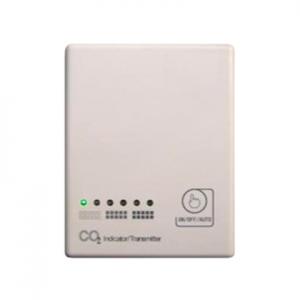

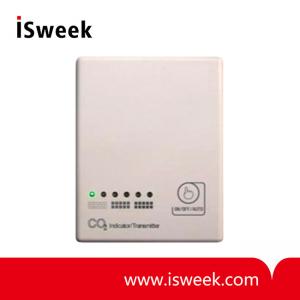

Carbon Dioxide Detector / Controller for Fan Switch - F2000TSM-CO2-8013

?? Power supply?: 100~240VAC?
?? Consumption?: 1.8 W Max / 230VAC?
?? CO2 measuring range?: 0~2,000ppm?
?? Accuracy@25°C(77°F), 2000ppm?: ±40ppm +3% reading?
?? Stability?: <2% of FS over life of sensor?
?? Response time?: <2 minutes for 90% step change?
?? Operation temperature: 0~50°C(32~122°F)
?? Operation humidity?: 0~95%RH, non condensing?

Model Number: F2000TSM-CO2-8013
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

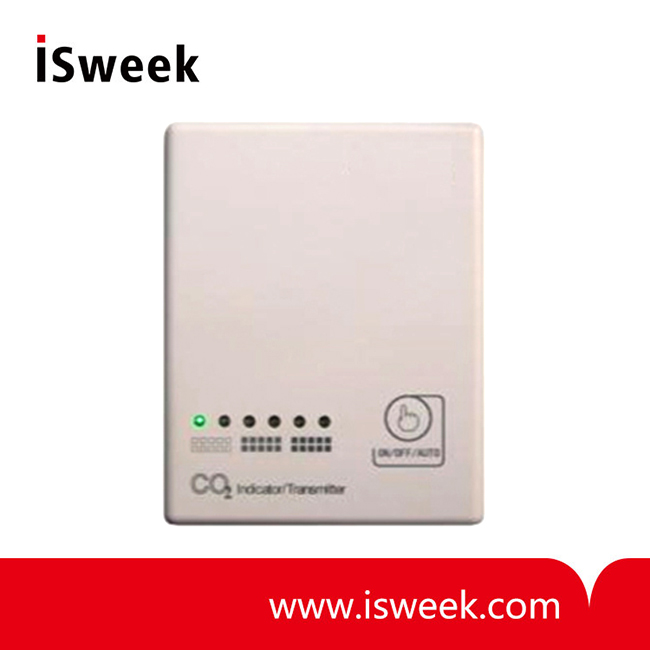

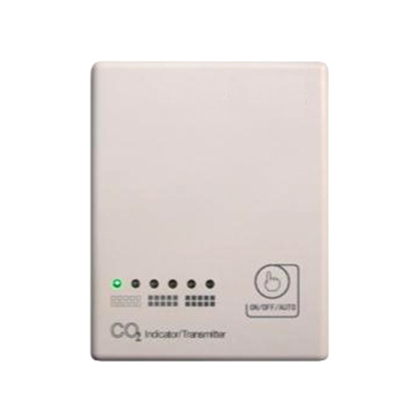

Carbon Dioxide Detector/Controller for Fan Switch
Model #: F2000TSM-CO2-8013
CE Approval

F2000TSM-CO2-8013 Carbon Dioxide Detector/Controller Features
? Real-time detecting CO2 level with wall-mounting type
? NDIR infrared CO2 module inside with four CO2 detection range selectable.
? CO2 sensor has Self-Calibration Algorithm and up to 15 years lifetime
? Six indicator lights indicate six CO2 range
? An SPDT relay output with max. 8A to control a 3-wire fan. Two CO2 setpoints selectable for the relay switch by a jumper
? A touch button for operation
? Design for control a ventilator in houses, offices, or other indoor areas
? Wide power range:100~240VAC power supply
? CE-Approval

F2000TSM-CO2-8013 Carbon Dioxide Detector/Controller Specifications

Power supply	100~240VAC
Consumption	1.8 W Max / 230VAC
CO2 sensor	Non-Dispersive Infrared Detector (NDIR) ABC Logic Self Calibration
CO2 measuring range	0~2,000ppm
Accuracy@25°C(77°F), 2000ppm	±40ppm +3% reading
Stability	<2% of FS over life of sensor
Response time	<2 minutes for 90% step change
Warm up time for turning-on	48 hours (first time), 2 minutes (operation)
6 LED lights From left to right: Blue Blue Green Orange Red Red	1^st blue light on as CO2 measurement≤600ppm 1^st and 2^nd blue lights on when 600ppm Green light on when 800ppm Orange light on when 1,000ppm 1^st red light on when 1,500ppm 1^st and 2^nd red lights on as CO2 measurement >2,000ppm
Relay control	Max. switch current: 8A (load resistance) SPDT relay Two CO2 levels selectable to control the relay by jumpers
Two CO2 level selectable	1000ppm/1500ppm The differential is 300ppm
The shortest protection time for fan turning on/off	10 minutes
Operation conditions	0~50°C(32~122°F); 0~95%RH, non condensing
Storage conditions	0~50°C(32~122°F); 0~80%RH, non condensing
Dimensions/Net weight	100mm x 80mm x 24mm (H x W x D) /180g
Installment standard	65mm x 65mm (2" x 4") wire box
Approval	CE
