Carbon Dioxide Infrared Sensor - MSH-CO2

? High sensitivity to carbon dioxide
? Gas diffusion sampling
? Standard sensor size
? Temperature compensated detector elements
? Fast Response
? Wide operating temperature range

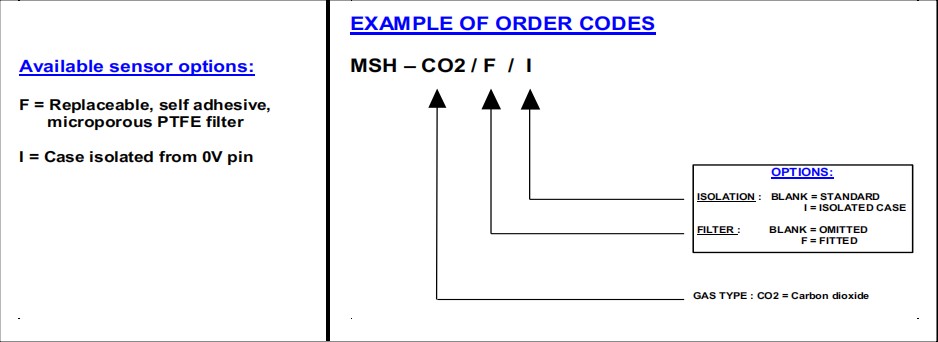

  • Model Number: MSH-CO2
  • Data Sheet: Date Sheet File
Quantity:
- +

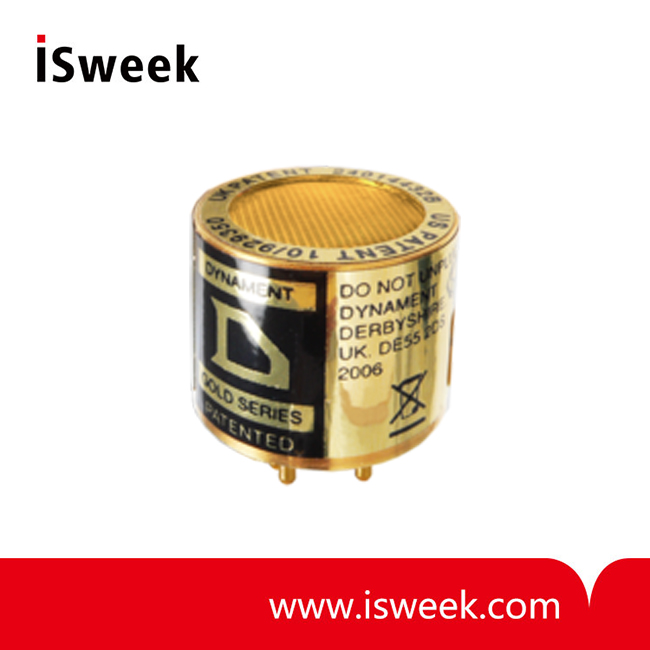

  • Carbon Dioxide Infrared Sensor
Mouse over image to zoom
Share:

Product Specification

DESCRIPTION

    Dynament infrared sensors operate by using the NDIR principle to monitor the presence of target gas. The sensor

contains a long life tungsten filament infrared light source, an optical cavity into which gas diffuses, a dual temperature

compensated pyroelectric infrared detector and an integral thermistor to monitor the internal temperature. The infrared

source should be driven externally with a constant voltage supply switched at a fixed frequency with a 50% duty cycle.

The dual pyroelectric detector produces two output signals in response to pulsed incident radiation from the source:

? An active signal which decreases in the presence of target gas

? A reference signal which is used to monitor the intensity of the source



FEATURES

? High sensitivity to carbon dioxide

? Gas diffusion sampling

? Standard sensor size

? Temperature compensated detector elements

? Fast Response

? Wide operating temperature range

? Internal temperature signal

? Low power



SPECIFICATION

Maximum lamp Power Requirements:

5V d.c. 60mA max. (50% duty cycle source drive)

Minimum operating voltage:

3.0V d.c. (50% duty cycle source drive)

Source drive frequency:

2.0Hz minimum, 3.0 Hz typical, 4.0 Hz maximum

Active mV pk-pk output in N2:

5.2mV typical @ 3Hz, 50% duty cycle

Reference mV pk-pk output in N2:

4.0mV typical @ 3Hz, 50% duty cycle

Sensitivity (reduction in active signal) at

20, 3Hz, 50% duty cycle:

14% typical @ 5000ppm CO2

30% typical @ 2.0% volume CO2

Measuring range:

0 -1000ppm up to 0 - 5% volume CO2

Resolution:

1% of measuring range

Warm up time:

To final zero ± 100ppm : <20s @20°C (68°F) ambient

To specification: < 30 minutes @20°C (68°F) ambient

Response Time T90:

 <30s @20(68°F) ambient

Zero Repeatability:

±50ppm @20(68°F) ambient

Span Repeatability:

±50ppm @20(68°F) ambient

Long term zero drift:

±50ppm per month @20(68°F) ambient

Operating temperature range:

-20to +50(-4°F to 122°F)

Storage temperature range:

-20to +50(-4°F to 122°F)

Humidity range:

0 to 95% RH non-condensing.

MTBF:

> 5 years

Temperature signal:

Integral thermistor for temperature monitoring

Weight:

17 grams



Refer to Technical Data Sheet TDS0022 General Description for further information
